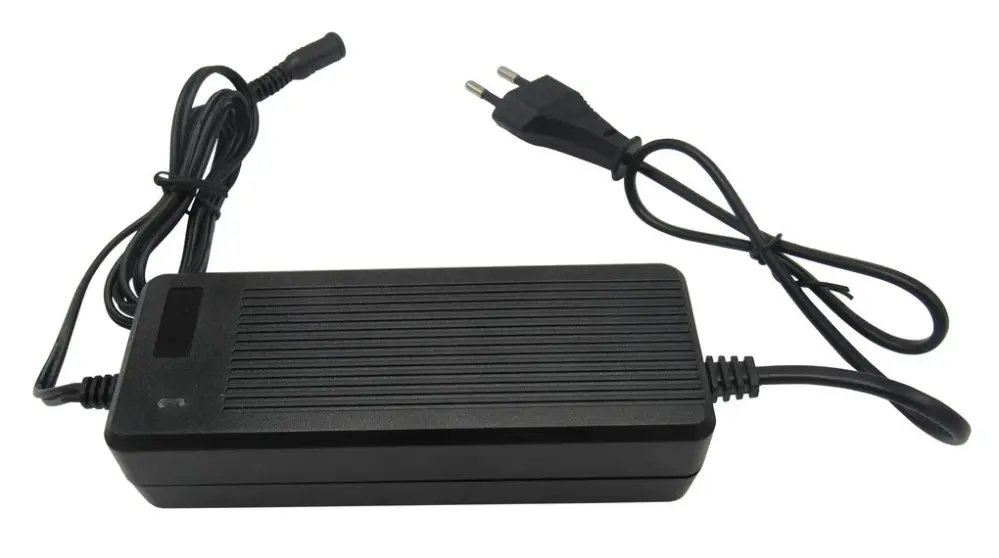

Adjustable power supply 6-16VDC 5A 60W

Universal adjustable power supply, max 60W. Adjustable in 7 steps between 6.0 and 16.0V. Supplied with 6 DC-adapter plugs for wide compatibility. Protected against short circuit, overload and overvoltage. LCD display indicates set voltage.

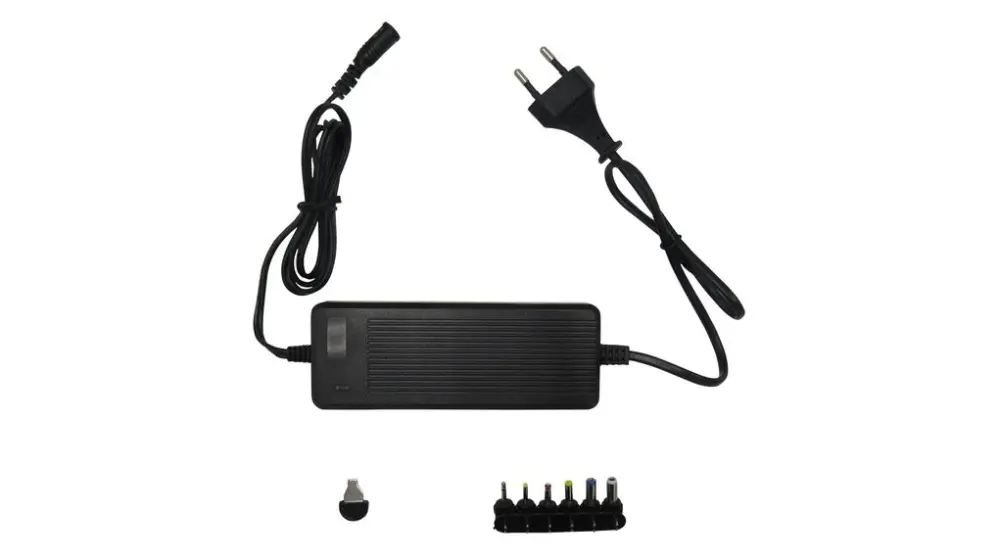

DC plugs: 3.5x1.35mm, 2.35x0.7 mm, 4.0x1.7 mm 5.5x2.1 mm, 5.5x2.5 mm och 2.5 mm. Polarity of DC plugs: selectable, plus or minus in the centre.

Specifications:

• Input: 100-240 VAC
• Cable length AC: 0.5 m
• Cable length DC: 1.0 m
• Dimensions: 138x52x33.5 mm.
• Weight: 311 g

Output:

• 6.0 V max 5.0A (30W)
• 7.5 V max 5.0A (37.5W)
• 9.0 V max 5.0A (45W)
• 12.0V max 5.0A (60W)
• 13.5V max 3.8A (51.3W)
• 15.0V max 3.8A (57W)
• 16.0V max 3.5A (max 56W)
