Product description

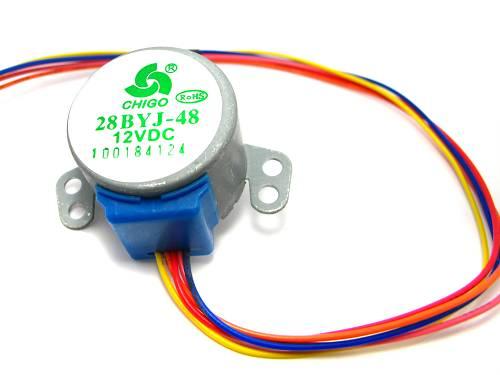

Low-cost stepper motor for 12V. This model is normally used in the manufacturing of air-conditioners, automatic window blinds and other applications where high torque is more important than high speed. The motor is internally geared with a ratio of about 64:1 (more precisely 63.68395:1).
The motor can be used together with all stepper motor drivers for unipolar motors. The red wire should then be connected to ground (GND), orange/pink to M1 (or similar) and blue/yellow to M2 (or similar). Can also easily be driven by discrete transistors or a darlington driver (ULN2003).

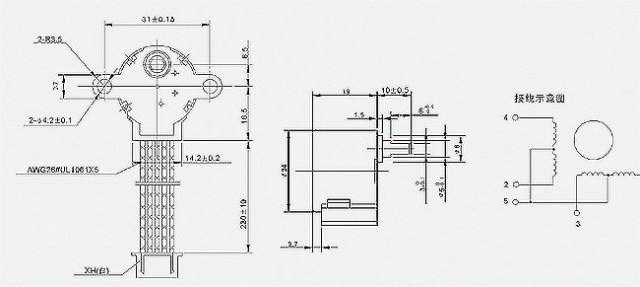

Specifications:
* Rated voltage: 12VDC
* Number of poles: 4
* Gear ratio: 64:1
* Rotations / step (stride angle): 5.625° (/64)
* Steps / revolution: 4096
* DC resistance: 200ohms ±7%
* Output shaft: 5mm flat

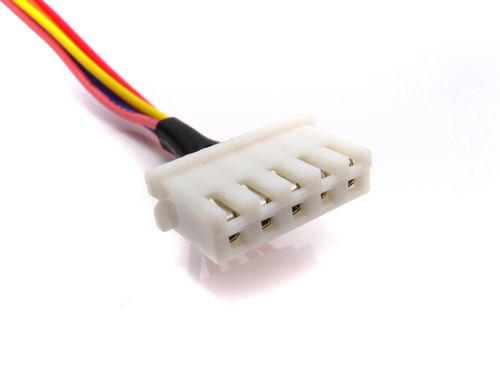

* Connector: JST XH 5-pol 2.5mm
* Connection wires: 240mm
* Weight: 36g
* Dimensions: ø28 x 19mm
The motor can be used together with all stepper motor drivers for unipolar motors. The red wire should then be connected to ground (GND), orange/pink to M1 (or similar) and blue/yellow to M2 (or similar). Can also easily be driven by discrete transistors or a darlington driver (ULN2003).
Specifications:
* Rated voltage: 12VDC
* Number of poles: 4
* Gear ratio: 64:1
* Rotations / step (stride angle): 5.625° (/64)
* Steps / revolution: 4096
* DC resistance: 200ohms ±7%
* Output shaft: 5mm flat
* Connector: JST XH 5-pol 2.5mm
* Connection wires: 240mm
* Weight: 36g
* Dimensions: ø28 x 19mm
