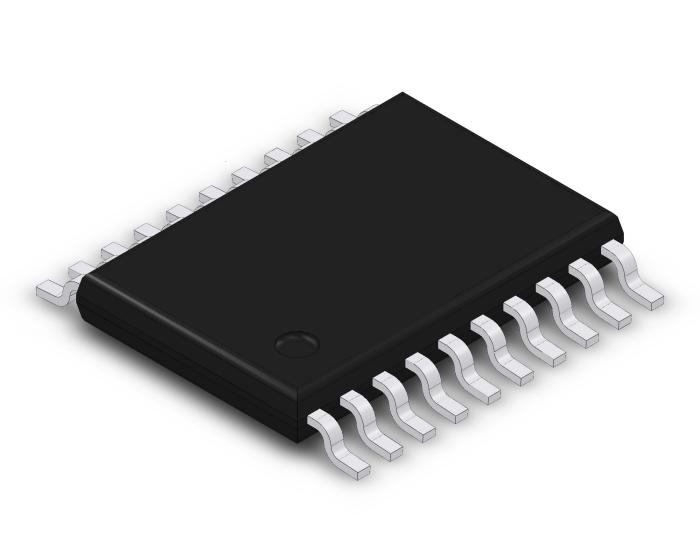

STM32G030F6P6 TSSOP-20 32-bit MCU 32k

Art no: 41019419
Shop this product, STM32G030F6P6 TSSOP-20 32-bit MCU 32k
price 24 SEK
Including 25% VAT
In stock, 12 pcs
Unit: Piece

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

The STM32G030F6P6 microcontrollers are based on high-performance Arm® Cortex®-M0+ 32-bit RISC core operating at up to 64 MHz frequency. Offering a high level of integration, they are suitable for a wide range of applications in consumer, industrial and appliance domains and ready for the Internet of Things (IoT) solutions. The devices incorporate a memory protection unit (MPU), high-speed embedded memories, DMA, an extensive range of system functions, enhanced I/Os, and peripherals. The devices offer standard communication interfaces (two I2Cs, two SPIs / one I2S, and two USARTs), one 12-bit ADC (2.5 MSps) with up to 19 channels, a low-power RTC, an advanced control PWM timer, four general-purpose 16-bit timers, two watchdog timers, and a SysTick timer. The devices operate within ambient temperatures from -40 to 85°C. They can operate with supply voltages from 2.0 V to 3.6 V. Optimized dynamic consumption combined with a comprehensive set of power-saving modes allows the design of low-power applications. VBAT direct battery input allows keeping RTC and backup registers powered.

Technical data

Technical data/attributes for this product
Attribute Value
Adc
16
Architecture
32-bit
Can
0
Case
TSSOP-20
Clock
64 MHz
Dac
0
Family
ARM
Flash
32
Gpio
17
I2c
2
Ram
8
Spi
2
Supply-voltage-max
3.6 V
Supply-voltage-min
2 V
Uart
2
Usb
0
  • SKU:

    41019419
