Product description

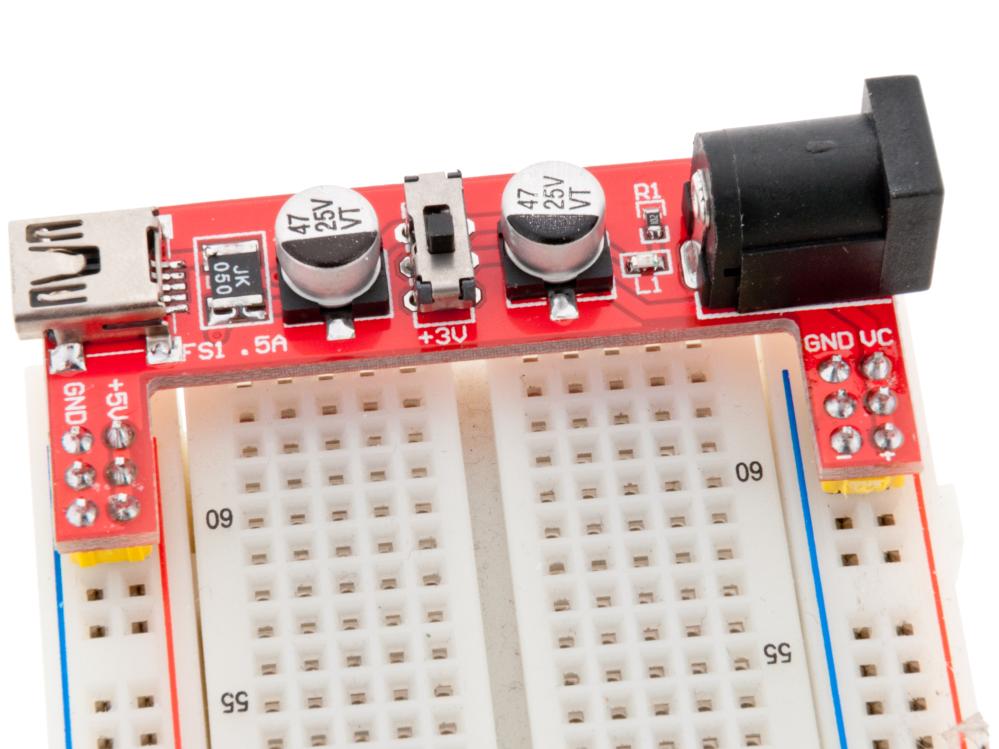

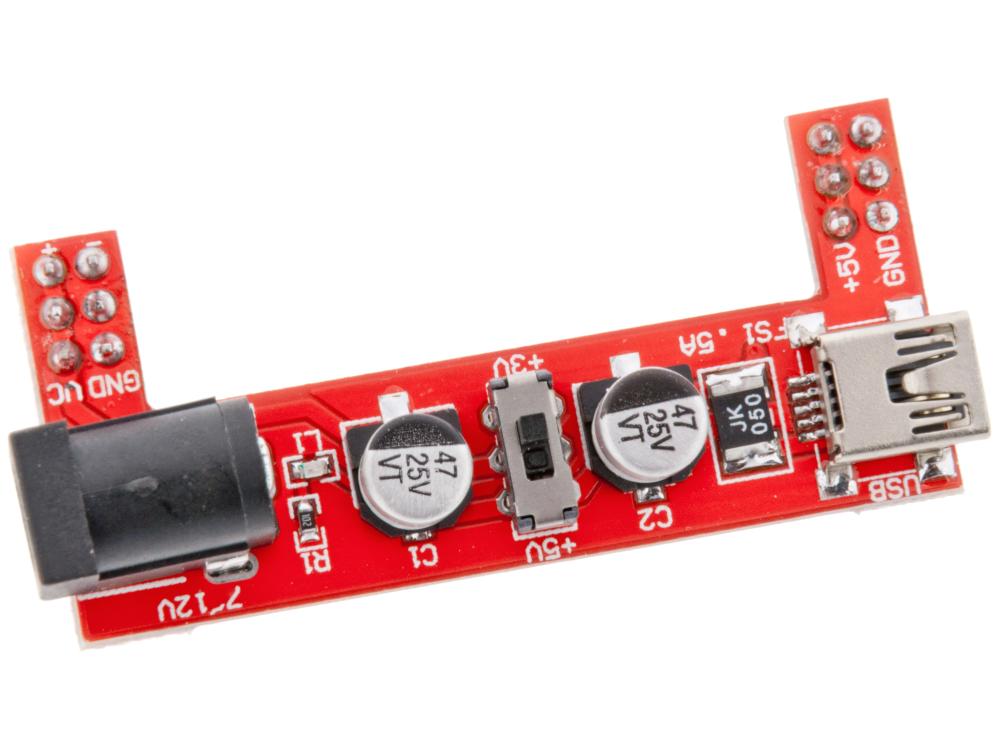

Handy power supply for protoypes and experiments on breadboards. The module is powered with a DC voltage between 6.5 and 12V via a DC-jack or a Mini-USB connector. The output can be switched between 3.3 and 5V. The pins are made to work with all regular breadboards that have 2+2 lengthwise power strips (se related products for compatible boards).
* Dimensions: 55.6 x 23.6mm
* Supply voltage: 6.5 - 12V
* Output voltage: 3.3V / 5V
* Max load: 700mA

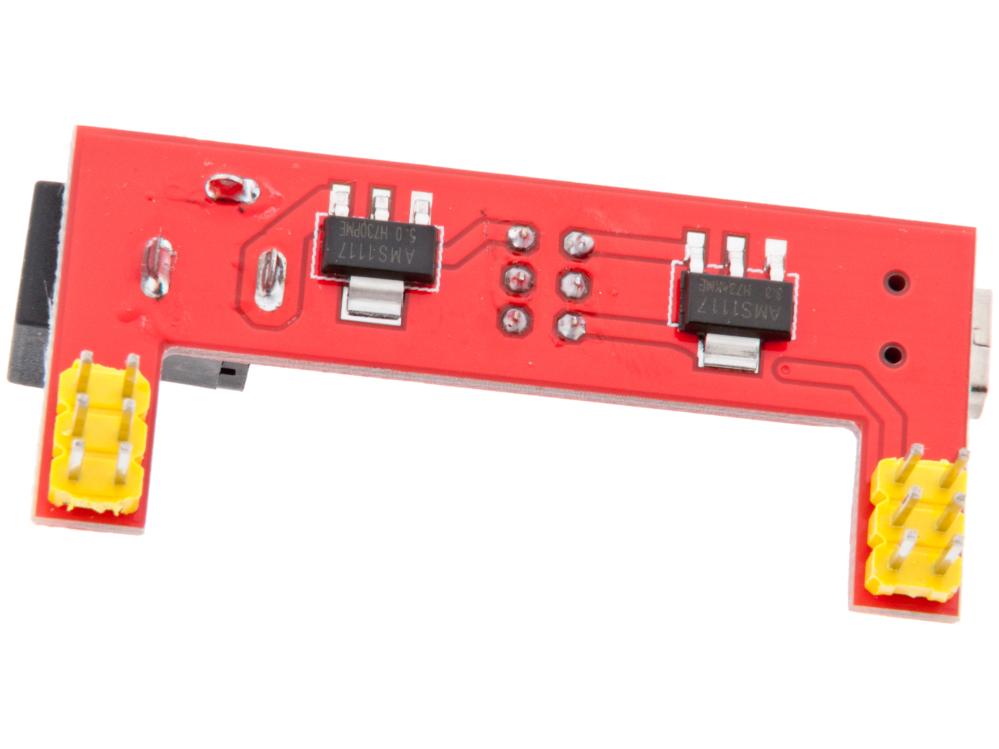

* Regulator: AMS1117-3.3 / AMS1117-5.0
* Dimensions: 55.6 x 23.6mm
* Supply voltage: 6.5 - 12V
* Output voltage: 3.3V / 5V
* Max load: 700mA
* Regulator: AMS1117-3.3 / AMS1117-5.0
