Product description

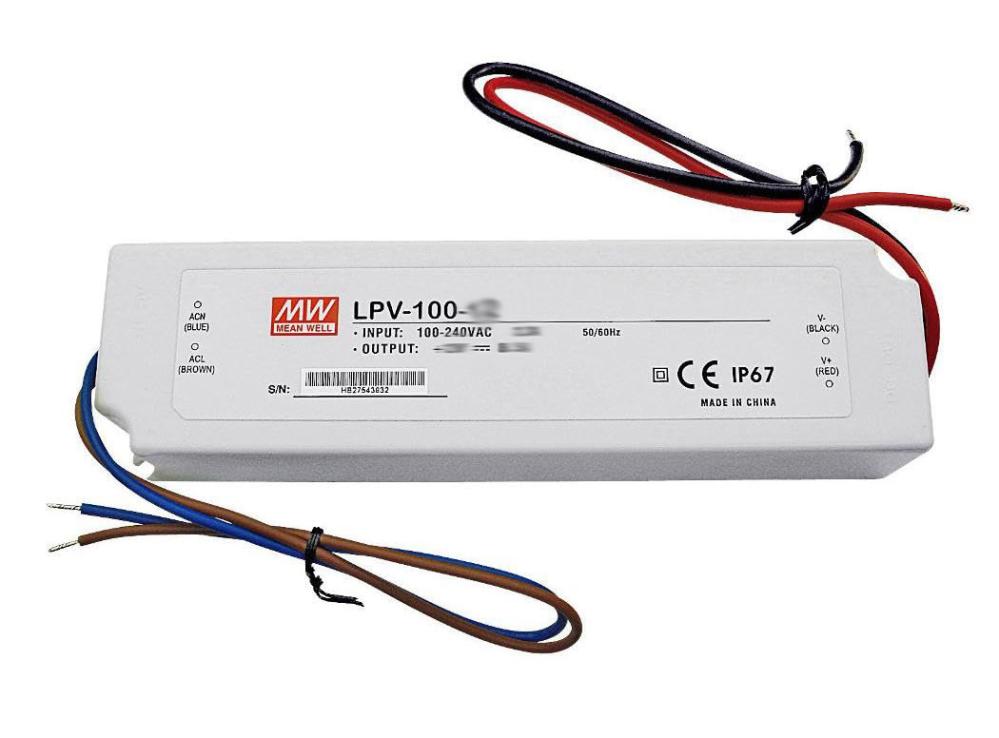

Switched-mode power supply built into a protective casing (IP67). Connection cables with open end. The power supply is protected against short circuit, overvoltage and overload with automatic reset. LPV-100 is suitable for machines, appliances, LED lighting, etc. The power supply is completely silent thanks to passive cooling (no disturbing fan).
Specifications:
- Operating voltage: 90 - 264 VAC
- Output voltage: 12 VDC
- Current (max): 8.5 A
- Power: 102 W
- Ripple: >120 mVp-p
- Dimensions: 190x52x37 mm
- Weight: 630 g
- Manufacturer: Mean Well
- Model#: LPV-100-12
- Mounting: Screw bracket
- Power cable in: 18AWG - 300 mm
- Power cable out: 14AWG - 300 mm
