Product description

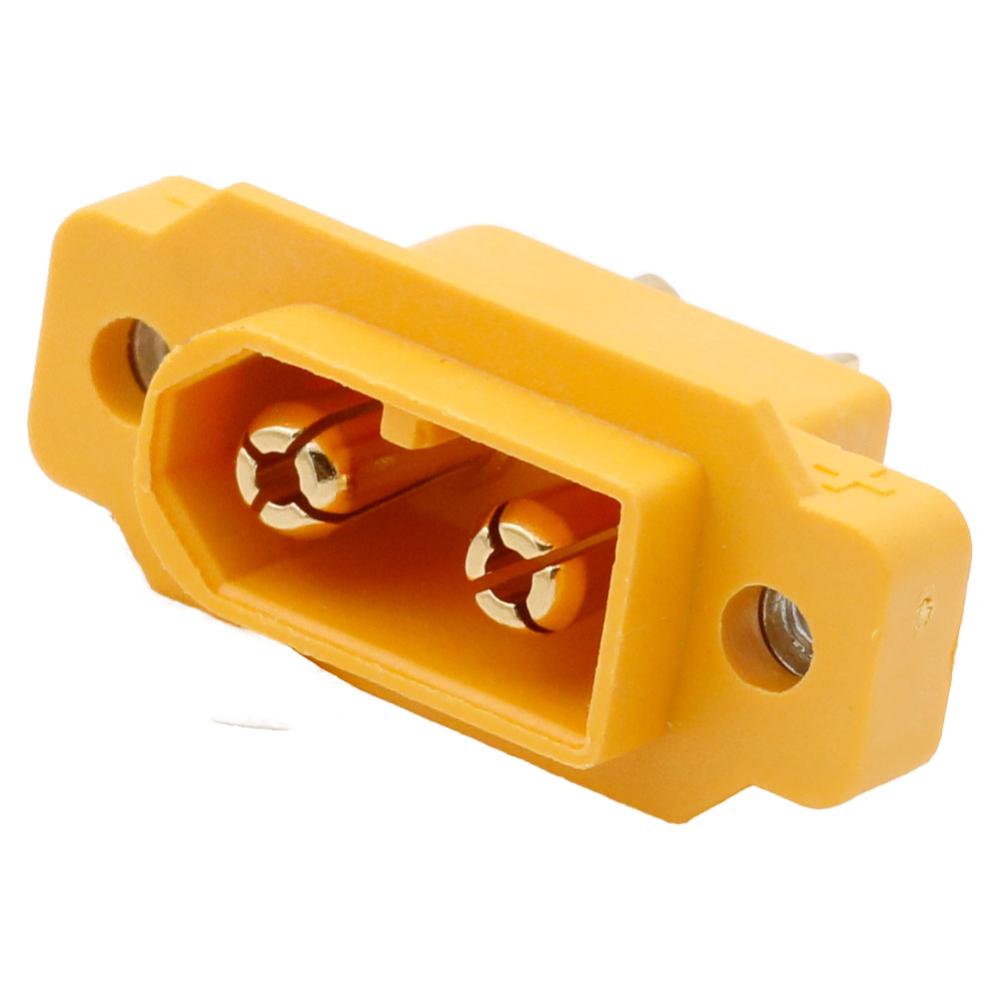

Heavy duty chassis mounted plug for DC power supply. Made of polyamide (nylon). Solder terminals for cable up to AWG12 (4mm²). Polarized housing eliminates the risk of incorrect connection. Original connector from Amass.
Specifications:
- Rated voltage: 500V
- Rated current: 30A continuous (60A intermittent)
- Max cable diameter: AWG12
- Operating temperature -20 to 120°C
- Contact material: Gold plated brass
- Mechanical durability: 1000 cycles
- Manufacturer: Amass
