Product description

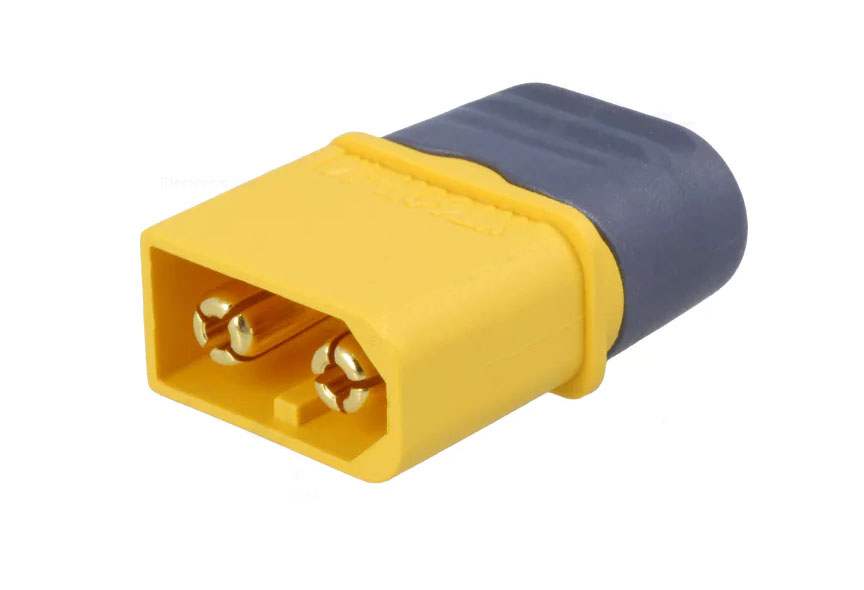

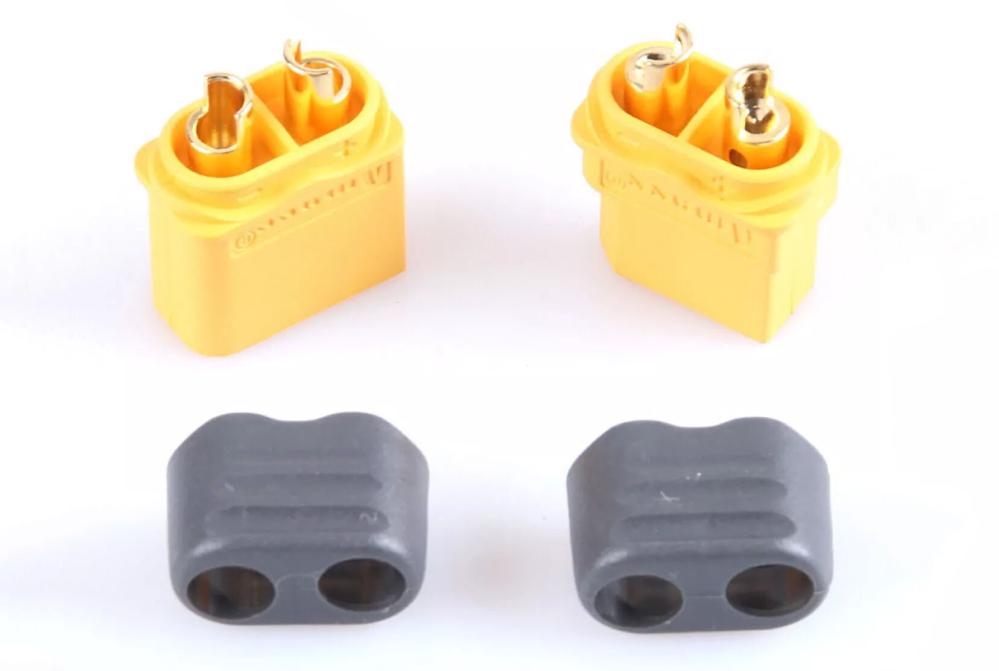

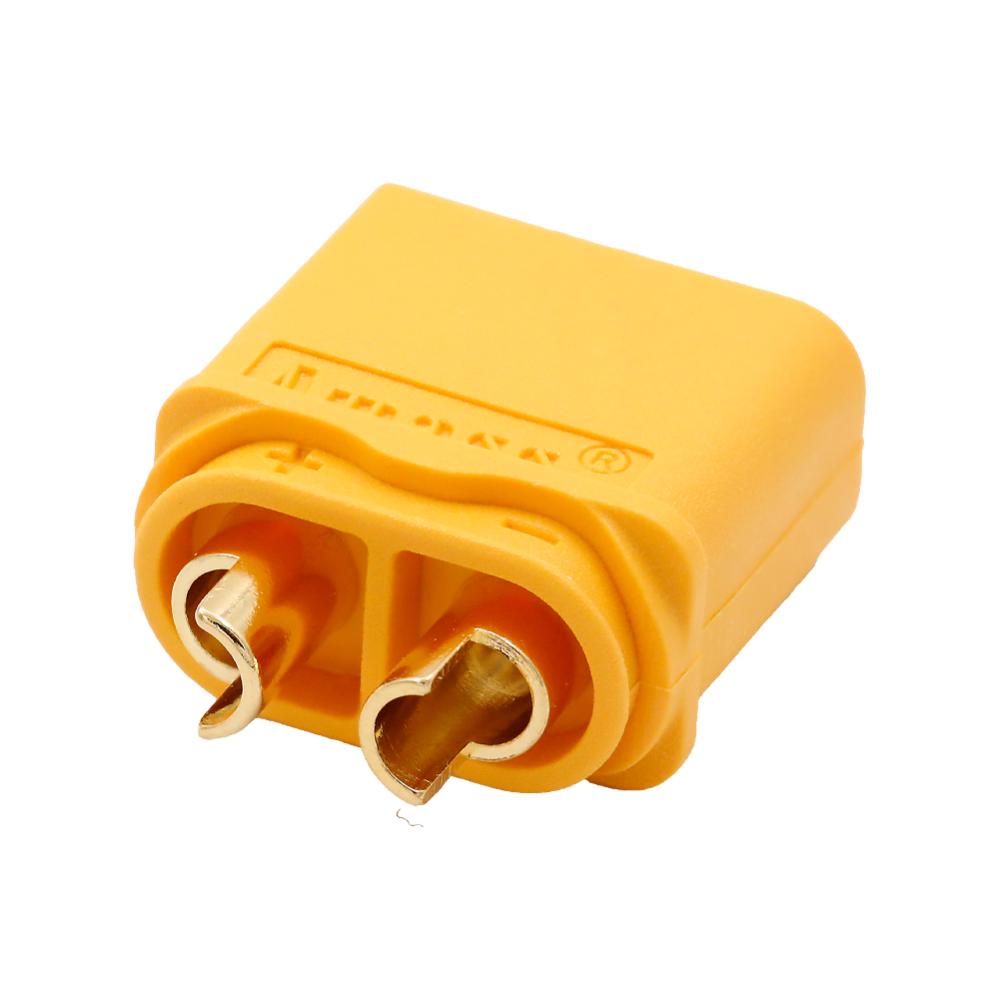

Heavy duty cable mounted plug for DC power supply with a cap protection. Made of polyamide (nylon). Solder sleeves for cable up to AWG12 (3.3 mm²). Polarized contact housing eliminates the risk of incorrect connection. Solder connection. Original connector from Amass.
Specifications:
- Rated voltage: 500V
- Rated current: 30A continuous (60A intermittent)
- Max cable diameter: AWG12 (3.3 mm²)
- Operating temperature -20 to 120°C
- Contact material: Gold plated brass
- Mechanical durability: 1000 cycles
- Manufacturer: Amass
