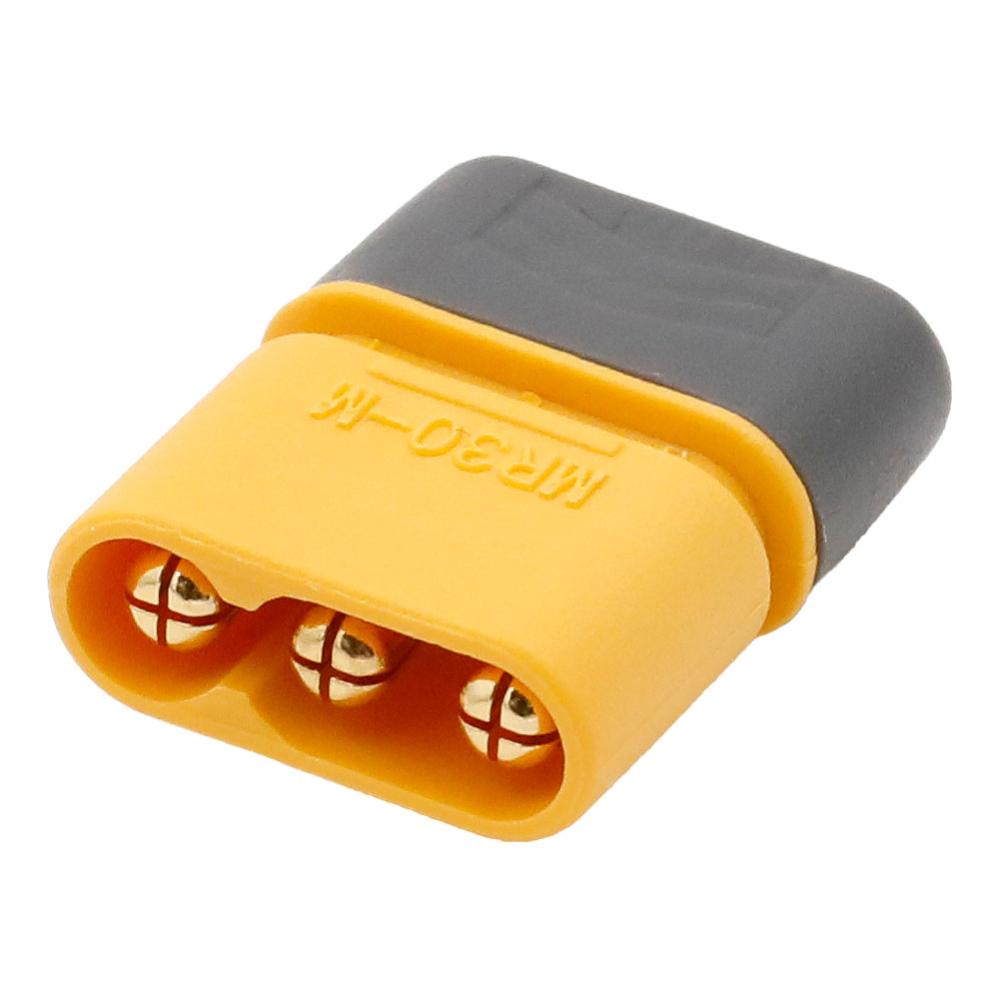

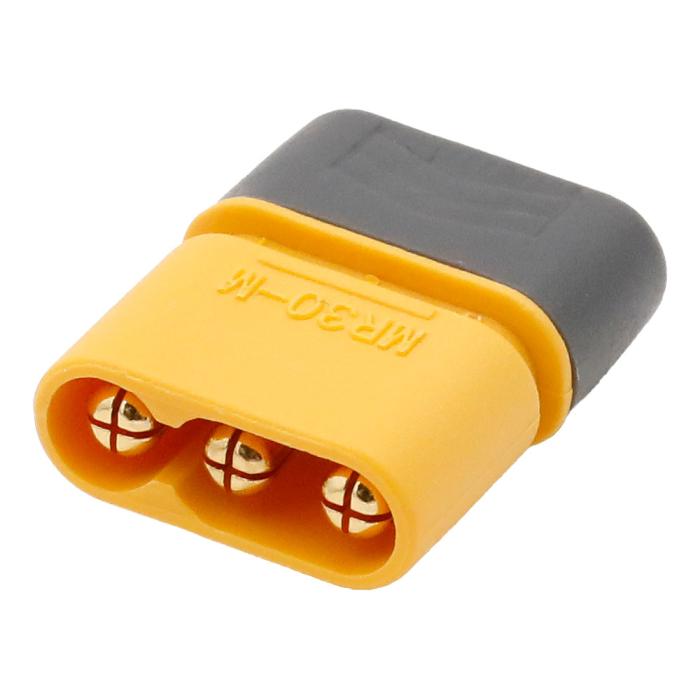

MR30 power connector 3-pin 15(30)A male

Art no: 41023804 - Amass
Shop this product, MR30 power connector 3-pin 15(30)A male
price 12.70 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 12:704pcs = 45:608pcs = 86:40

Quantity discount
QuantityPrice
1 till 3
12.70 SEK
4 till 7
11.40 SEK
8 till 15
10.80 SEK
16 till
9.50 SEK
In stock, 27 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

MR30-FB (XT30) 3-pole DC connector for cable assembly, solder connection. With protection cap. Made of polyamide (nylon). Solder connection for cable 16AWG (1.5 mm²). The connector is often used for brushless motors, LiPo batteries, etc. Typical use: RC hobby (airplane, helicopter, drone).

Specifications:

  • Rated voltage: 500 VDC
  • Rated current: 15A continuous (30A short periods)
  • 16AWG (1.5 mm²)
  • Contact resistance: 0.70 mOhm
  • Dimensions: 14.4x10.3x4.9 mm
  • Weight: 1.3g
  • Operating temperature -20 to 120°C
  • Contact: Gold plated
  • Connections and disconnections, lifetime: 1000 cycles
  • Manufacturer: Amass

Product information

  • SKU:

    41023804
  • MPN:

    MR30-M
