Product description

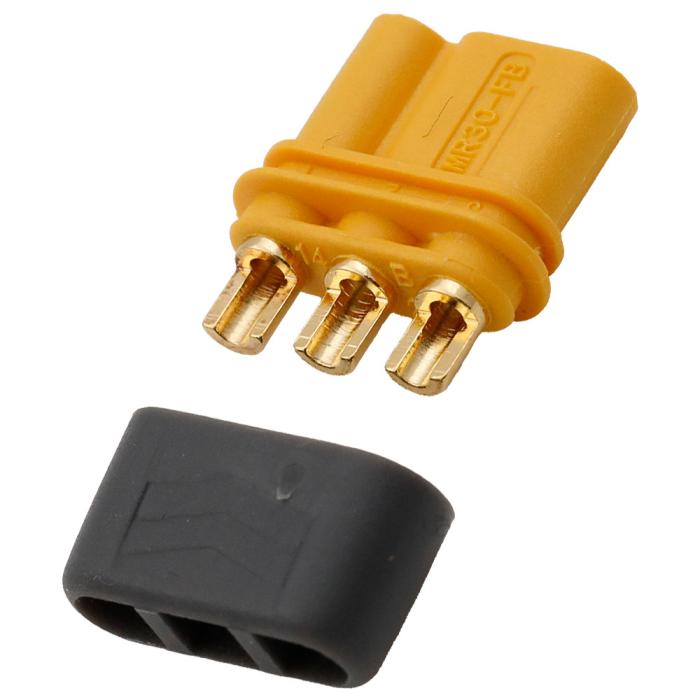

MR30-FB (XT30) 3-pole DC connector for cable assembly, solder connection. With protection cap. Made of polyamide (nylon). Solder connection for cable 16AWG (1.5 mm²). The connector is often used for brushless motors, LiPo batteries, etc. Typical use: RC hobby (airplane, helicopter, drone).
Specifications:
- Rated voltage: 500 VDC
- Rated current: 15A continuous (30A short periods)
- 16AWG (1.5 mm²)
- Contact resistance: 0.70 mOhm
- Dimensions: 14.4x10.3x4.9 mm
- Weight: 1g
- Operating temperature -20 to 120°C
- Contact: Gold plated
- Connections and disconnections, lifeti
