Product description

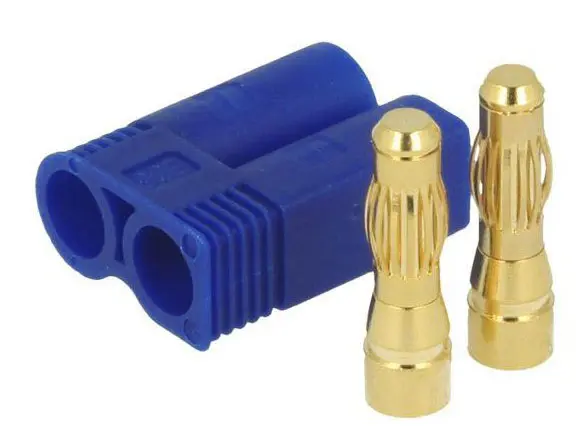

EC5 high-current DC connector 2-poles for cable assembly, solder connection. Used for e.g. power supply from LiPo batteries. Made of polyamide. For cable AWG10-9 (4-6 mm²). Reverse polarity protected, polarized housing eliminates the risk of incorrect connection. This connector is common in the RC hobby (model car, boat, plane, helicopter).
Specifications:
- Rated voltage: 500 VDC
- Rated current: 40A continuous (90A momentary)
- Short Impulse load: 180A
- Pin/jack: ø5mm
- Max cable area: AWG5 (16 mm²)
- Recommended cable dimension: AWG9-10 (4-6mm²)
- Contact resistance: 0.4 mOhm
- Dimensions: 25x20x10 mm
- Weight: 8g
- Operating temperature -20 to 120°C
- Contact: Gold plated
- Use times: 1000 cycles
- Manufacturer: Amass / RS-PRO
