Product description

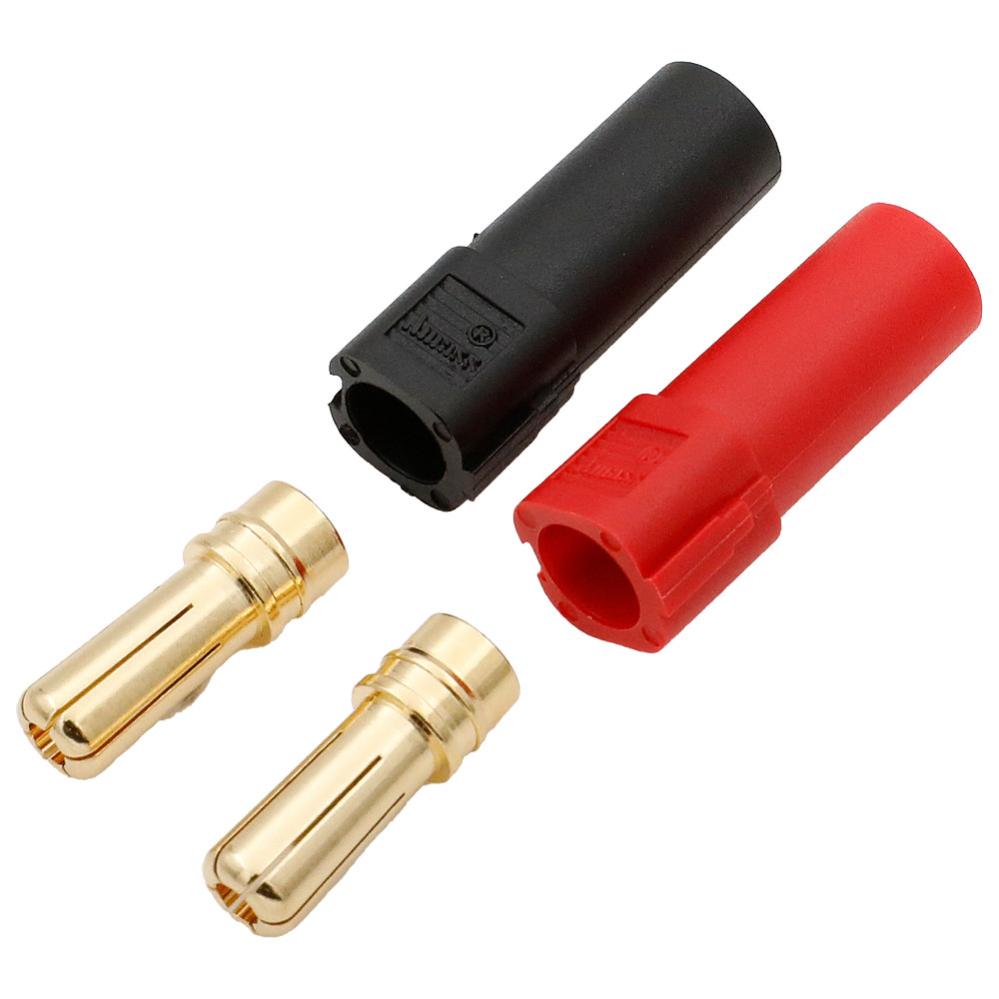

2x DC plug for high current applications. For cable mounting, solder connection. Used for e.g. voltage supply from LiPo/LiIon batteries. Connector housing made of polyamide (nylon). The connector is common in electric vehicles, RC hobby (car, boat, airplane, helicopter). Supplied in set of red + black connector housing and 2x DC plugs.
Specifications:
- Rated voltage: 500 VDC
- Rated current: 60A continuous (130A short periods)
- Pin: ø6 mm
- Max cable diameter: AWG8 (10 mm²)
- Contact resistance: 0.2 mOhm
- Operating temperature -20 to 120°C
- Contact: Gold plated brass
- Connections and disconnections, lifetime: 1000 cycles
- Manufacturer: Amass / RS-PRO
