Product description

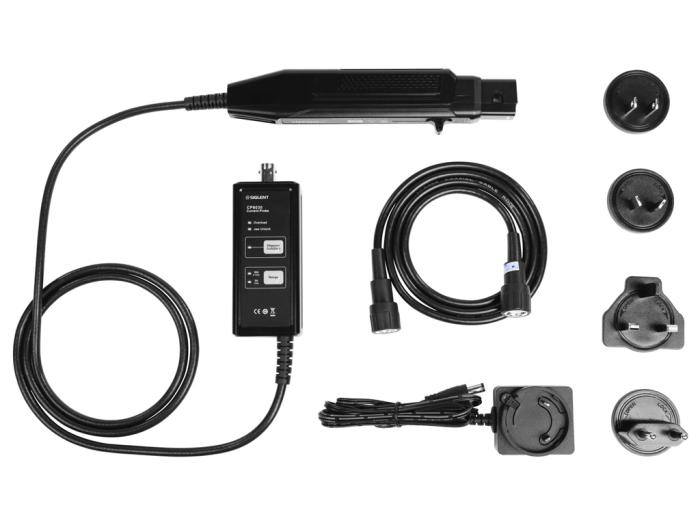

The CP6000 series current probes are wide band width DC / AC active current probes, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance BNC input.
Key features:
- Highly accurate current measurements
- Wide bandwidth
- Accurate and easy current measurements
- DC/AC measuring capabilities
- Over-current protection with dual indicators ( buzzer and LED )
- High and low range selection
- Low current measurements
- Degaussing and automatic zero setting
- Digital set by panel soft push keystroke for a longer service life
Applications:
- Switching and linear power design
- LED lighting design
- New energy resources
- Frequency conversion household appliances
- Experiment of electronic engineering
- Semiconductor devices design
- Inverters / transformer design
- Electronic ballast design
- Industrial control / consumer electronic design
- Engine driven design
- Power electronic and electrical drive experiment
- Electric vehicle transportation design
Specifications:
- Bandwidth (-3dB): 50 MHz
- Rise time: <= 3.5 nS
- Range: 30 A rms
- Peak Current: 50 A
- Switching Ratio: 5 A / 30 A
- Accuracy: 5 A (±1% ±1 mA)
- Accuracy: 30 A (±1% ±10 mA)
- Power: Standard 12 V / 1.2 A DC Power Adapter (included)
