Product description

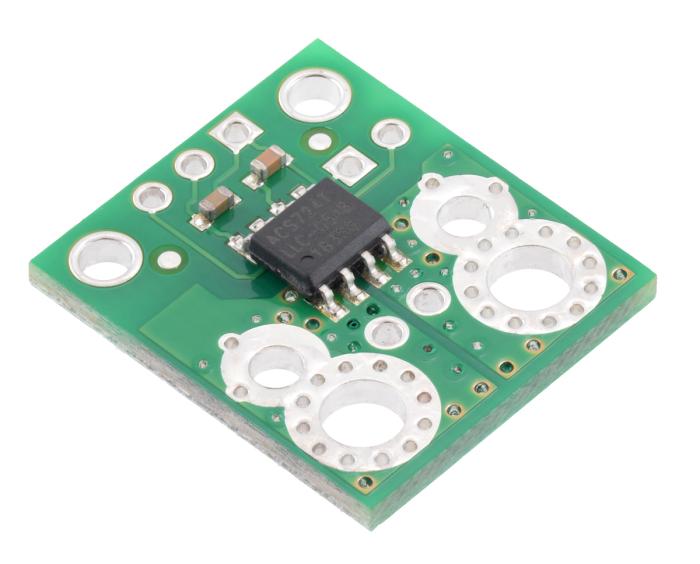

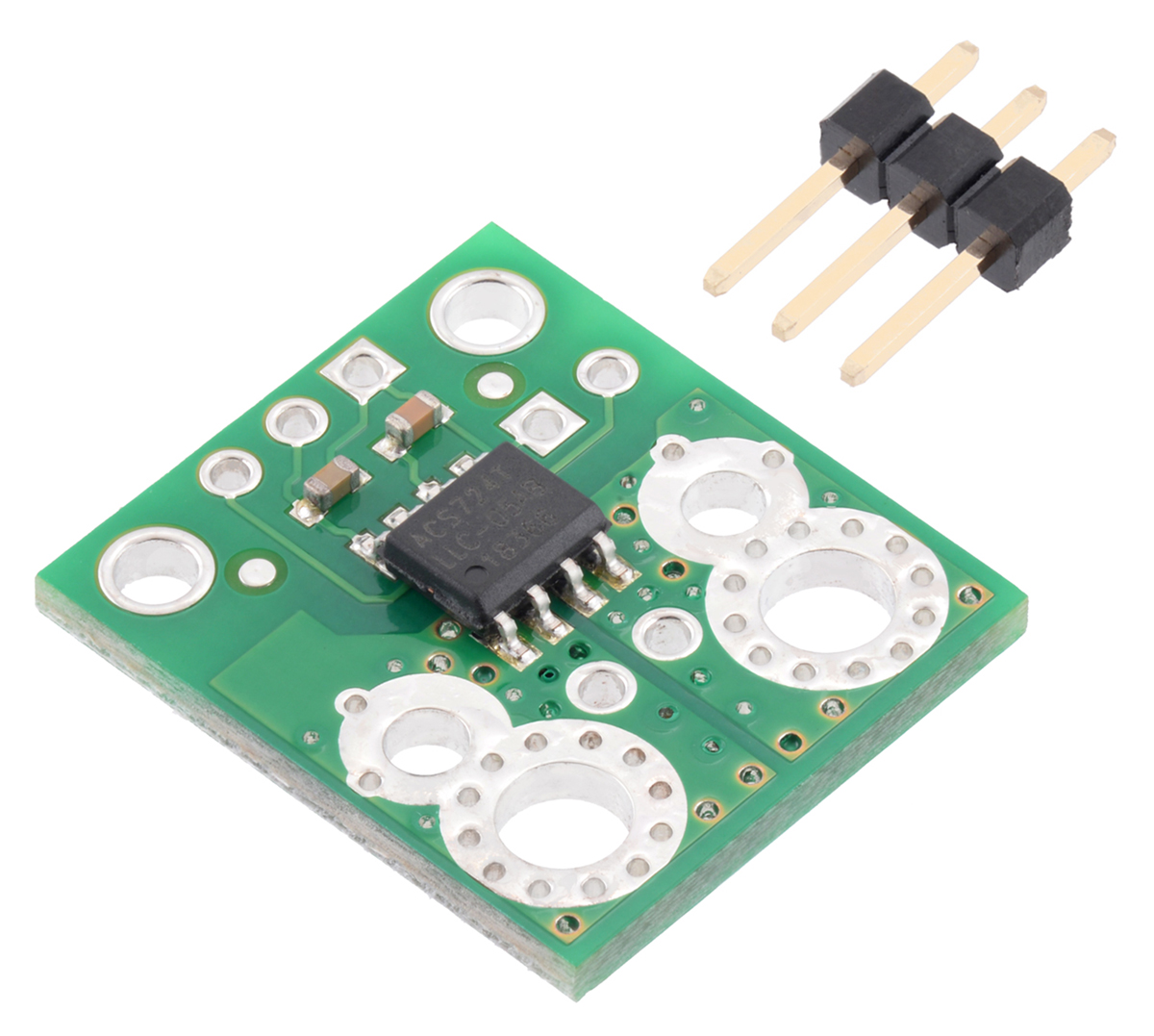

This board is a simple carrier of Allegro's bidirectional ±5A ACS724LLCTR-05AB Hall effect-based linear current sensor, which offers a low-resistance (~1.2 mO) current path and electrical isolation up to 2.4 kV RMS. This version accepts a bidirectional current input with a magnitude up to 5 A and outputs a proportional analog voltage (400 mV/A) centered at 2.5 V with a typical error of ±1.5%. It operates from 4.5 V to 5.5 V and is intended for use in 5 V systems.

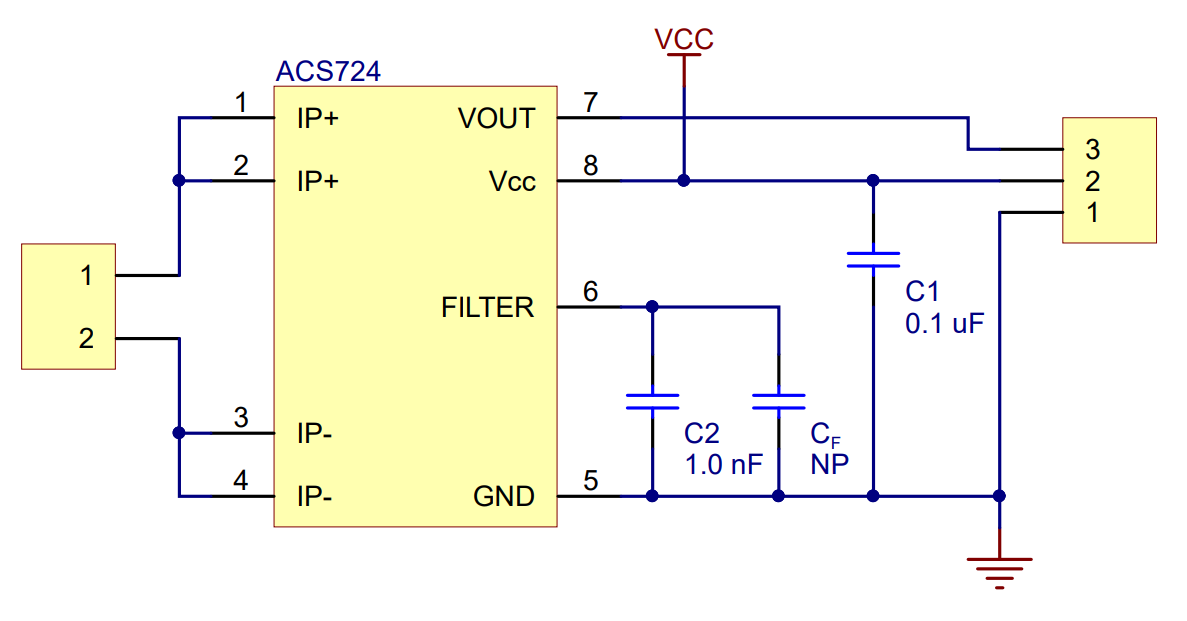

This current sensor is a carrier board or breakout board for Allegro's ACS724 Hall effect-based linear current sensors; we therefore recommend careful reading of the ACS724 datasheet before using this product.
Features:
* Differential Hall sensing rejects common-mode fields, the orientation of the sensor relative to the Earth's magnetic field does not affect the measurement
* The conductive path internal resistance is typically 1.2 mO, and the PCB is made with 2-oz copper, so very little power is lost in the board.

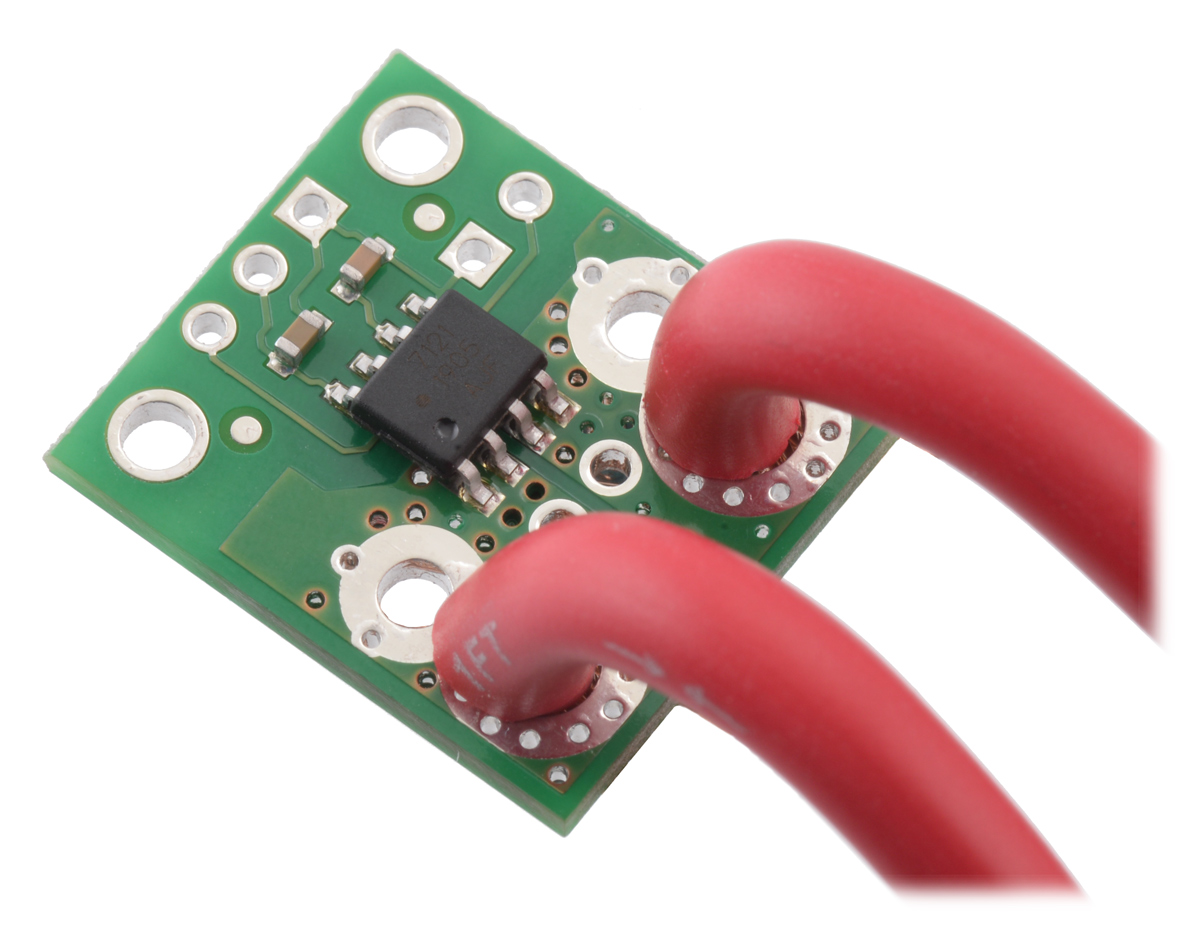

* Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor's electronics (up to 2.4 kV RMS), which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
* High 120 kHz bandwidth for faster response times in control applications.
* Filter pin allows user to filter the output for improved resolution at lower bandwidth.
* Integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor.
* Automotive-grade operating temperature range of -40°C to 150°C.

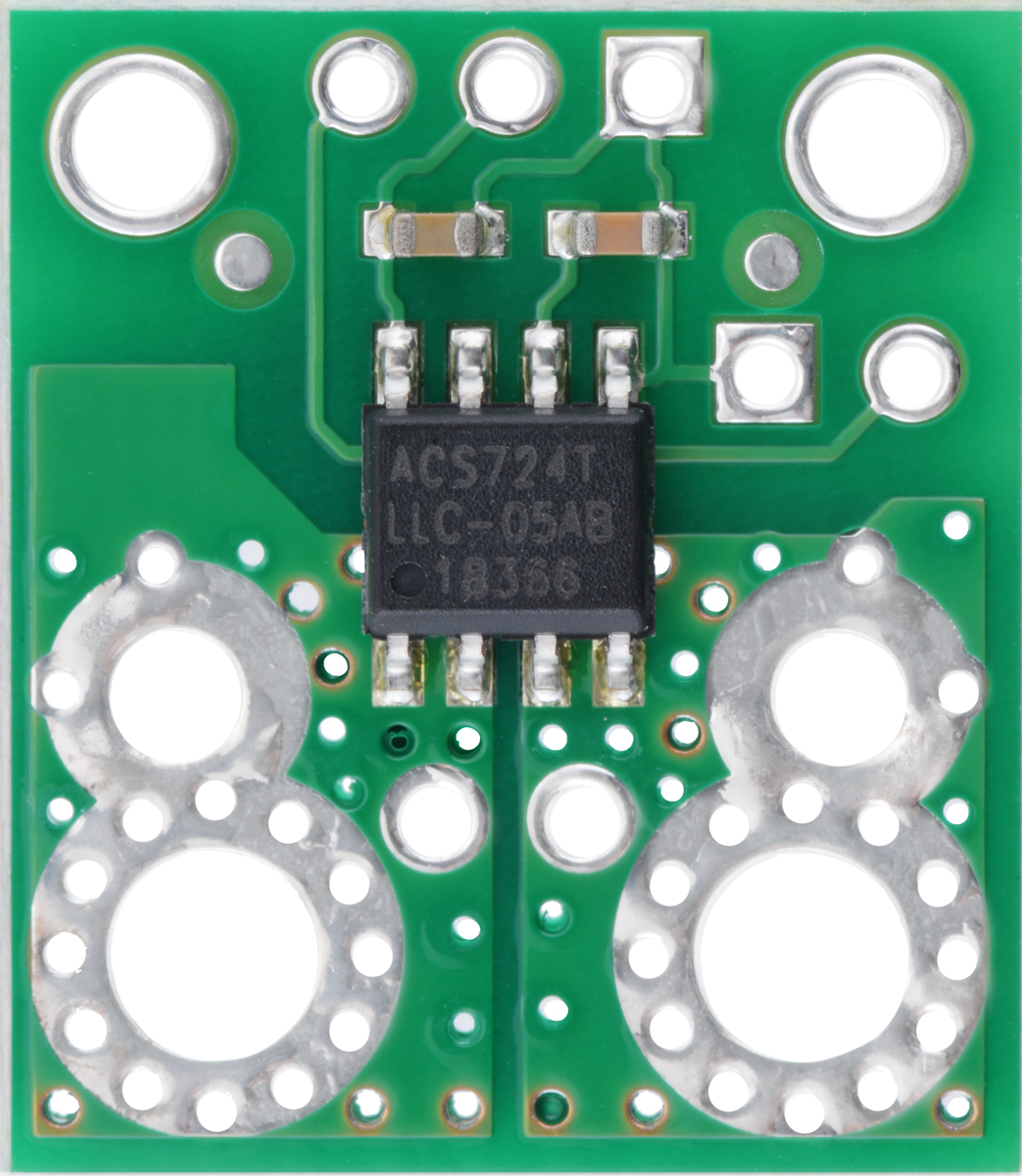

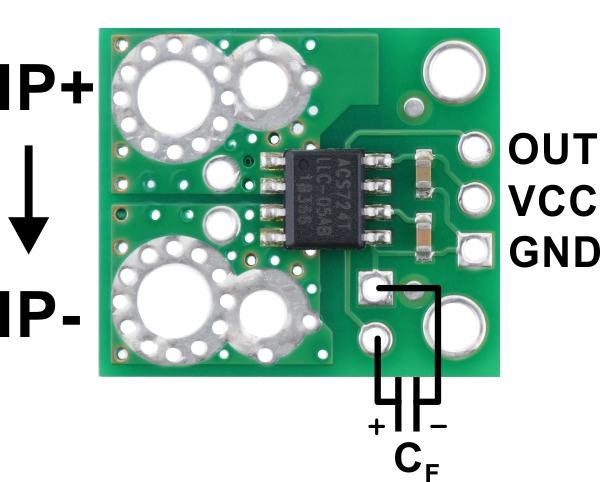

* The pads are labeled on the bottom silkscreen, as shown in the picture to the right. The silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.
This current sensor is a carrier board or breakout board for Allegro's ACS724 Hall effect-based linear current sensors; we therefore recommend careful reading of the ACS724 datasheet before using this product.
Features:
* Differential Hall sensing rejects common-mode fields, the orientation of the sensor relative to the Earth's magnetic field does not affect the measurement
* The conductive path internal resistance is typically 1.2 mO, and the PCB is made with 2-oz copper, so very little power is lost in the board.
* Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor's electronics (up to 2.4 kV RMS), which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
* High 120 kHz bandwidth for faster response times in control applications.
* Filter pin allows user to filter the output for improved resolution at lower bandwidth.
* Integrated digital temperature compensation circuitry allows for near closed loop accuracy over temperature in an open loop sensor.
* Automotive-grade operating temperature range of -40°C to 150°C.
* The pads are labeled on the bottom silkscreen, as shown in the picture to the right. The silkscreen also shows the direction that is interpreted as positive current flow via the +i arrow.
