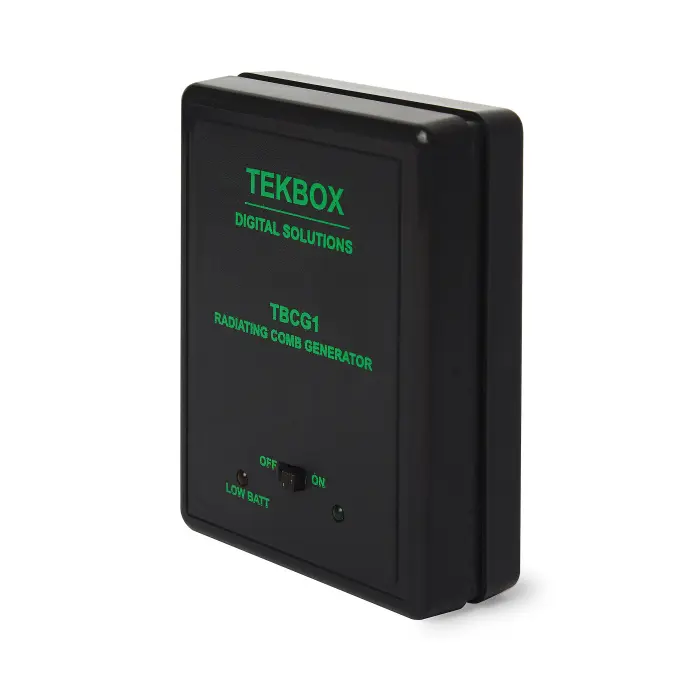

TBCG1 Radiating Comb Generator

Art no: 41017195 - Tekbox
Shop this product, TBCG1 Radiating Comb Generator
price 1 495 SEK
Including 25% VAT
In stock, 3 pcs
Unit: Piece

12 000 products

Quick dispatch

Nordics and EU shipping available

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

The TBCG1 is a radiating comb generator with an internal antenna and a base frequency of 100MHz. It radiates a comb spectrum characterized up to 6GHz. The comb generator is built and characterized to serve as a rough reference for testing radiated noise measurement set ups in anechoic chambers, TEM/GTEM cells, shielded chambers, etc.
It is a portable device, powered by a 9V alkaline cell.

Specifications
Base frequency: 100 MHz
Characterized comb spectrum: 30 MHz - 6 GHz
Power supply: 9V PP3 (E-block) alkaline battery
Current consumption: 175 mA
Dimensions: 80 mm x 61 mm x 27 mm
Weight including battery: 76 g

Warning: the TBCG1 radiates across a wide spectrum, significantly exceeding radiating noise limits specified in any CISPR standard. Use it only in a shielded environment to avoid interference with other electronic products
Turn off the device after its use, to prevent battery drainage (ION = 175mA)

Product information

  • SKU:

    41017195
  • MPN:

    TBCG1
