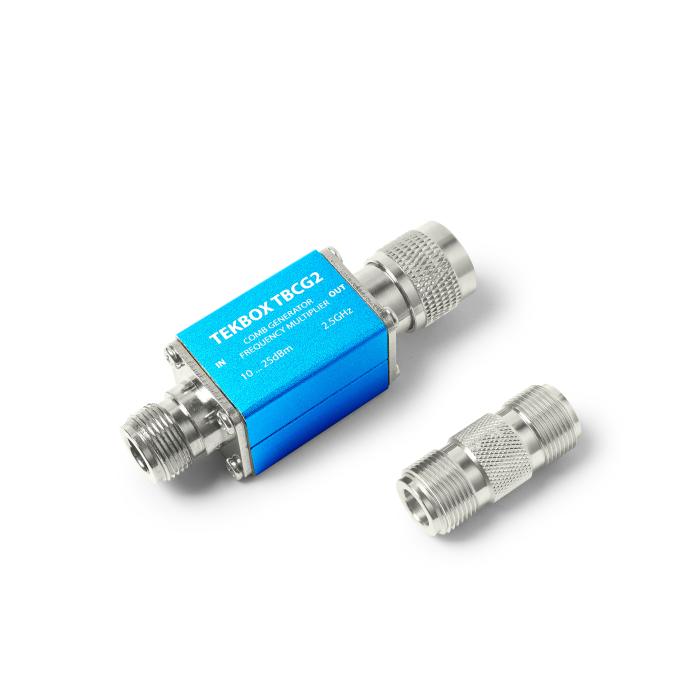

TBCG2 Comb Generator / Frequency Multiplier

The TBCG2 is a passive, step recovery diode based comb generator / frequency multiplier. It is optimized for moderate drive power and spectrum flatness in the frequency range 1 MHz to 2.5GHz.
The recommended drive power is +10 dBm to +20 dBm
The frequency range for the drive signal is 1 MHz to 350MHz

Specifications
Input Power: +10 dBm to +20 dBm; 25 dBm max
Input Frequency: 1 MHz to 350 MHz

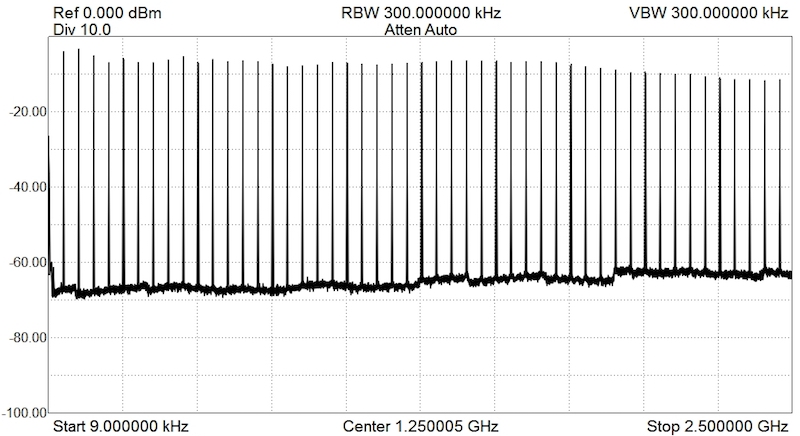

Comb spectrum: 1 MHz - 2.5 HGz
Input connector: N female
Output connector: N male
Dimensions: 81 mm x 26 mm x 26 mm
Weight: 96 g
