Product description

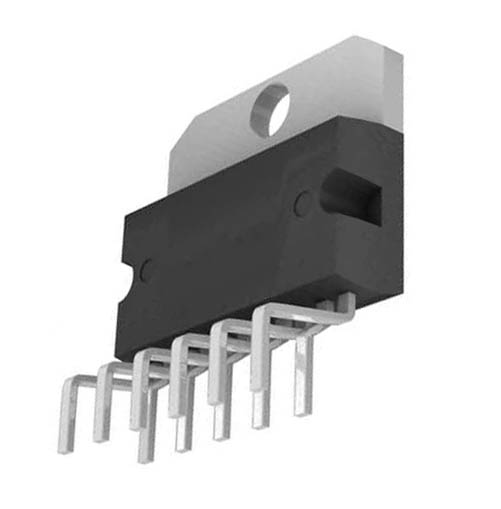

TDA2004R 10 + 10W Stereo amplifier. The TDA2004R is a class-B dual audio power amplifier in MULTIWATT 11 - package specifically designed for car radio applications ; stereoamplifiers are easily designed using this device that provides a high current capability (up to 3.5A) and that can drive very low impedance loads (down to 1.6 Ohm). High reliability of the chip and of the package with additional safety during operation thanks to protections against output AC short circuit to ground.
Features
- Low distortion
- Low noise
- Very inductive loads
- Overrating chip temperature
- Load dump voltage surge
- Fortuitous open ground
Space and cost saving: very low number of external components,very simple mounting system with no electrical isolation between the package and the heatsink.
