Product description
FM radio circuit for MTS

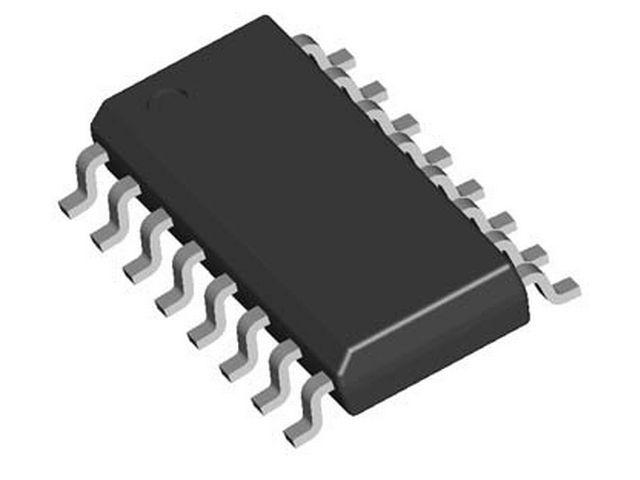

The TDA7021T integrated radio receiver circuit is for portable radios, stereo as well as mono, where a minimum of periphery is important in terms of small dimensions and low cost. It is fully compatible for applications using the low-voltage micro tuning system (MTS).
The IC has a frequency locked loop (FLL) system with an intermediate frequency of 76 kHz. The selectivity is obtained by active RC filters. The only function to be tuned is the resonant frequency of the oscillator. Interstation noise as well as noise from receiving weak signals is reduced by a correlation mute system.
Features
* RF input stage
* Mixer
* Local oscillator
* IF amplifier/limiter
* Frequency
* Mute circuit
* MTS compatible
* Loop amplifier
* Internal reference circuit
* LF amplifier for
- mono earphone amplifier or
- MUX filter
* Field-strength dependent channel separation control facility
Supply voltage: 1.8 - 6.0V
The TDA7021T integrated radio receiver circuit is for portable radios, stereo as well as mono, where a minimum of periphery is important in terms of small dimensions and low cost. It is fully compatible for applications using the low-voltage micro tuning system (MTS).
The IC has a frequency locked loop (FLL) system with an intermediate frequency of 76 kHz. The selectivity is obtained by active RC filters. The only function to be tuned is the resonant frequency of the oscillator. Interstation noise as well as noise from receiving weak signals is reduced by a correlation mute system.
Features
* RF input stage
* Mixer
* Local oscillator
* IF amplifier/limiter
* Frequency
* Mute circuit
* MTS compatible
* Loop amplifier
* Internal reference circuit
* LF amplifier for
- mono earphone amplifier or
- MUX filter
* Field-strength dependent channel separation control facility
Supply voltage: 1.8 - 6.0V
