Product description

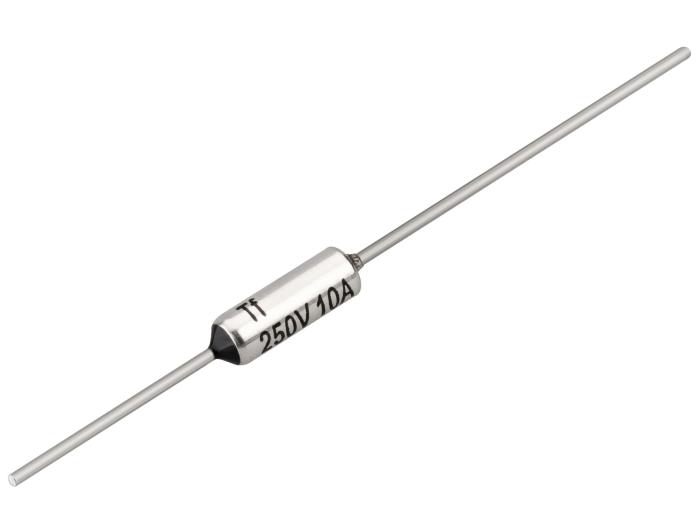

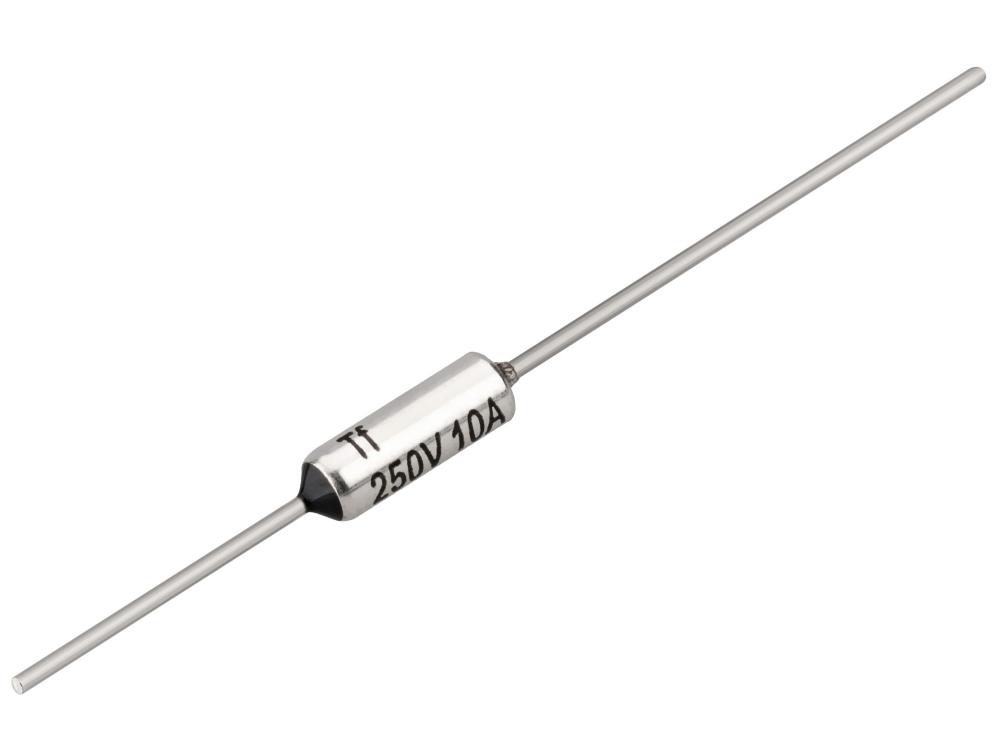

Thermal cut-off fuse with pins for crimping or screw mounting. The fuse breaks the circuit when the rated temperature is reached. Non-resettable. Not recommended for soldering as the fuse may trip when heated by the soldering process.
* Max voltage: 250VAC
* Max current: 10A
* Cut-off temperature: 216°C (+0...-5°)
* Dimensions: ø4 x 15mm
* Leads: ø1mm
* Max voltage: 250VAC
* Max current: 10A
* Cut-off temperature: 216°C (+0...-5°)
* Dimensions: ø4 x 15mm
* Leads: ø1mm
