Product description

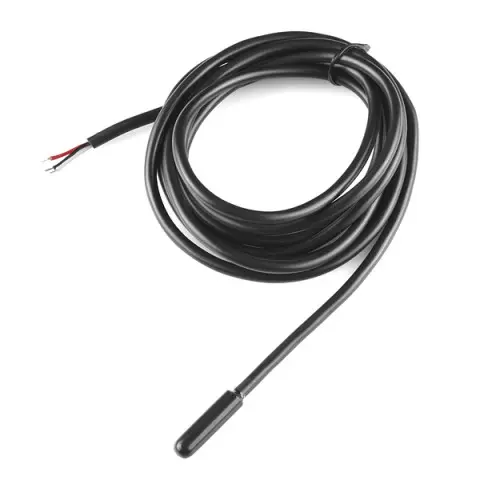

This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.
Dimensions: Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 1.8m
Black = GND
Red = VDD
White = DQ
Features:
3.0-5.5V input voltage
Waterproof
-55°C to+125°C temperature range
±0.5°C accuracy from -10°C to +85°C
1 Wire interface
Dimensions: Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 1.8m
Black = GND
Red = VDD
White = DQ
Features:
3.0-5.5V input voltage
Waterproof
-55°C to+125°C temperature range
±0.5°C accuracy from -10°C to +85°C
1 Wire interface
