Product description

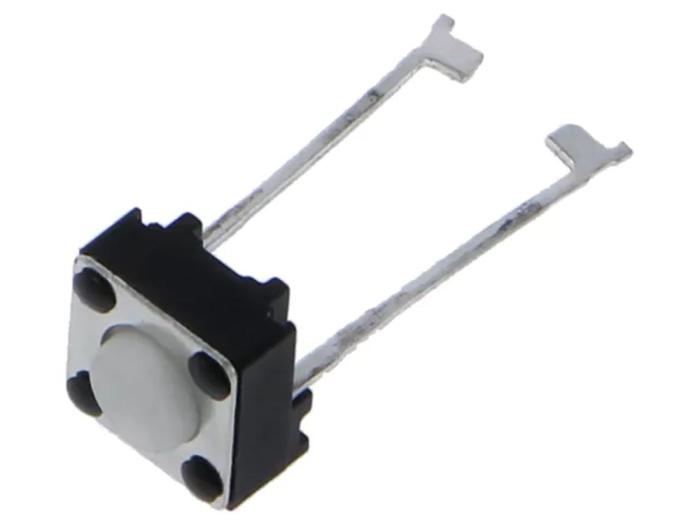

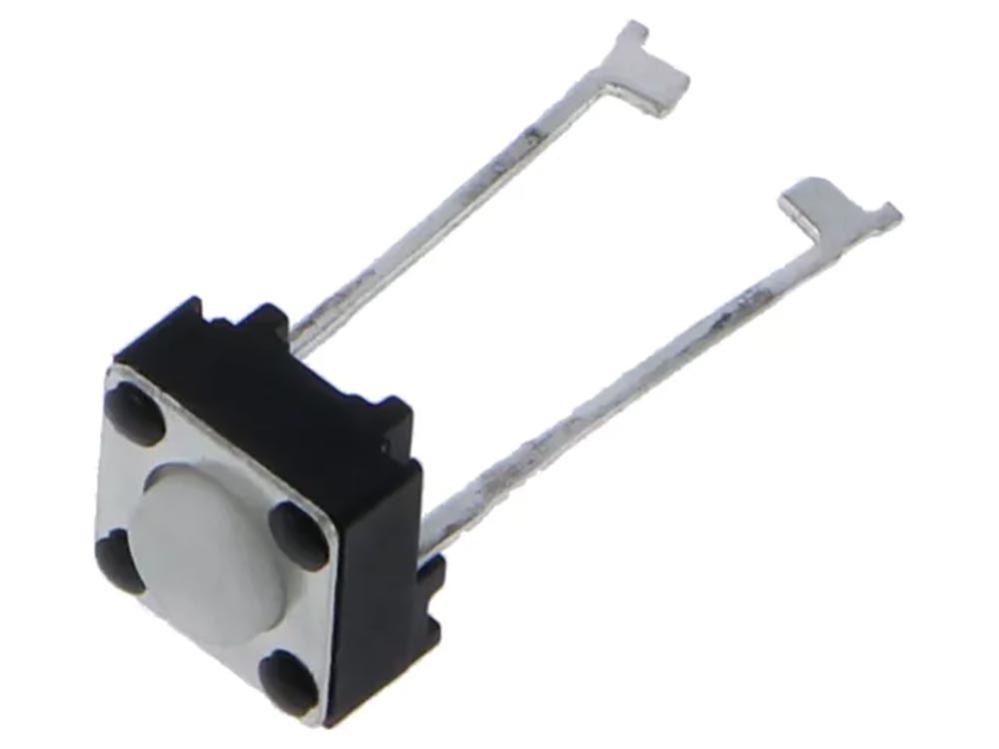

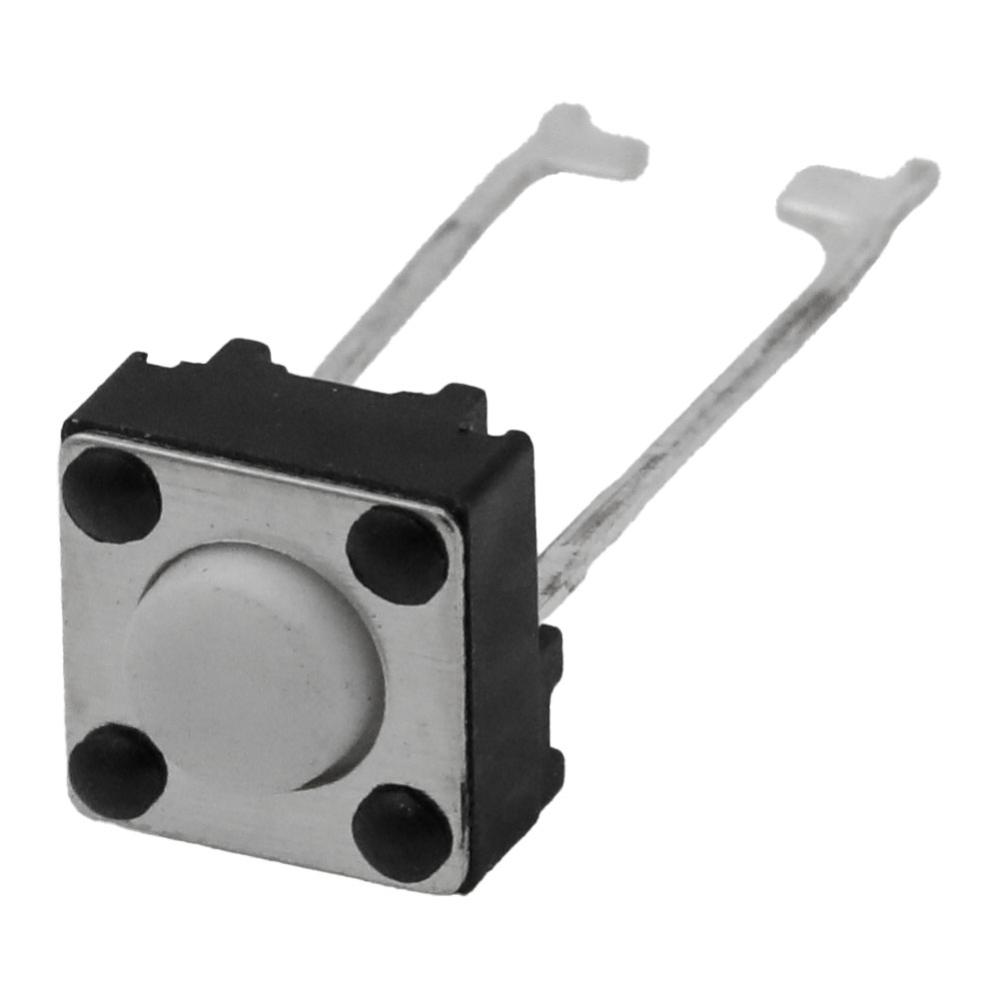

Micro-switches with momentary closing and tactile feedback (TACT).
Specifications:
Mechanical & Physical Characteristics
- Type: Micro switch TACT
- Actuation force: 159.1gf / 1.56N
- Travel: 0.25 mm
- Lifetime: 100,000 cycles
- Dimensions: 6x6x4.3 mm
- Mounting type: THT
- Number of pins: 2
- Contact material: Silver plated bronze
- Button/enlosure colour: Grey / Black
- Button shape: Round
Electrical & Functional Characteristics
- Contact configuration: OFF-(ON) / SPST-NO
- Default state: NO
- Current / Voltage capacity: 50mA / 24V DC
- Contact resistance max: 100 mOhm
- Insulation resistance min: 0.1GOhm
- Operating temperature: -35 - 105°C
Other information
- Certification: RoHS
