Product description

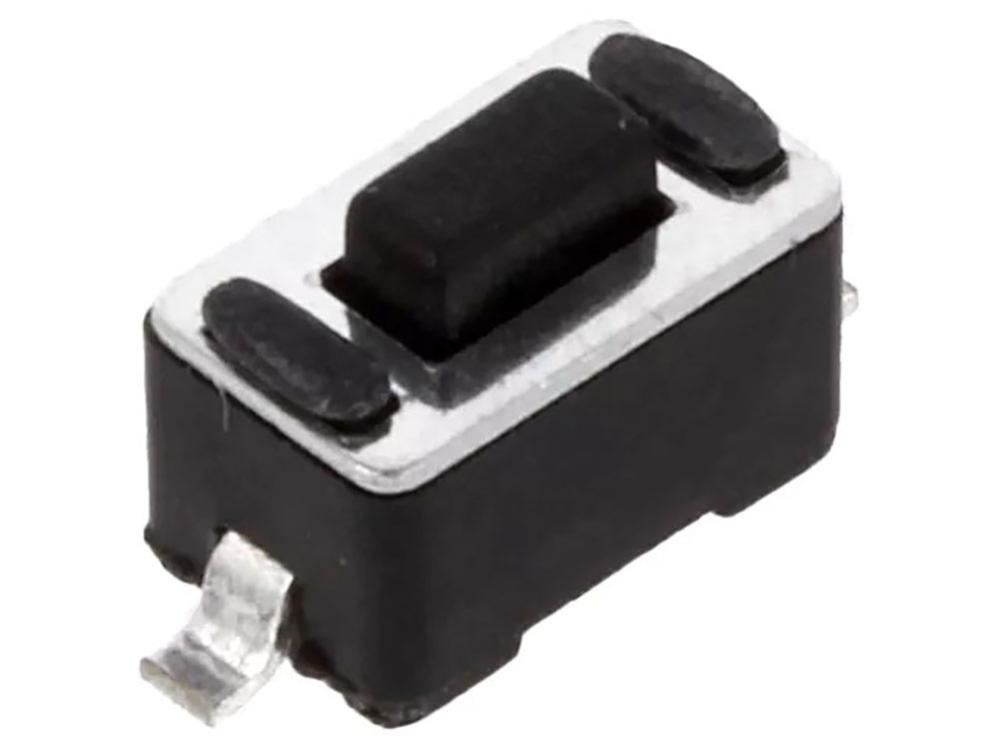

Micro switch with momentary closing and tactile feedback (TACT).
Specifications:
Mechanical & Physical Characteristics
- Type: Micro switch TACT
- Operating force: 163.2Gf / 1.6N
- Dimensions: 6x3x4.3 mm
- Pitch: 1.6x7.4 mm
- Mounting type: SMD
- Number of pins: 2
- Button/enclosure colour: Black
- Button shape: Rectangle
Electrical & Functional Characteristics
- Contact configuration: OFF-(ON) / SPST-NO
- Default state: NO
- Current/voltage capacity: 50mA / 24V DC
- Contact resistance max: 50 mOhm
- Insulation resistance min: 0.1GOhm
- Operating temperature: -25 - 70°C
Other information
- Certification: RoHS
- Soldering temperature: 250° C
