Product description

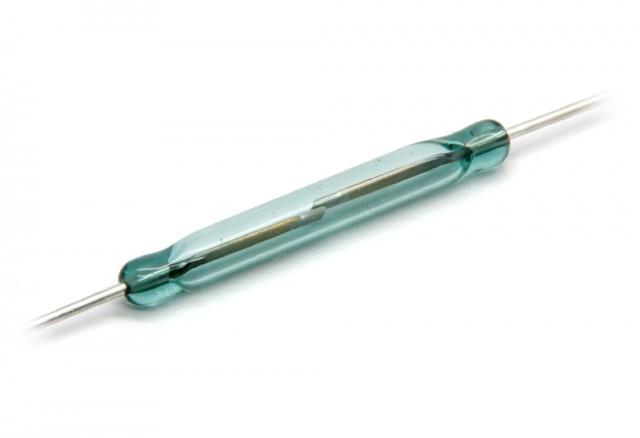

Reed switch, single pole. Contact is closed by magnetic force. The sensitivity for reed switches is measured in AT (ampere-turns). Lower AT means that the switch is more sensitive to magnetism.
Manufacturer: Hamlin
Type: MDSR-4
Max voltage: 200V DC
Max current: 0.5A
Sensitivity: 12-38AT
Total length: 40.38mm
Body length: 15.24mm
Body diameter: 2.3mm
NB! Cutting the connectors may harm the component, see more under Preview Files ("kapning av ben" - pdf is in English).
