Product description

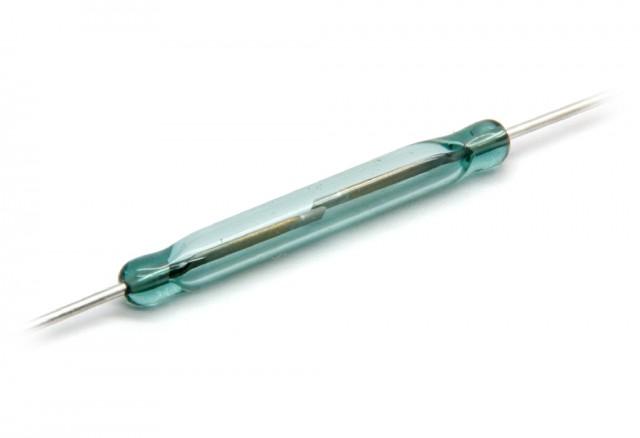

Reed switch, single pole with soft connection leads. Contact is closed by magnetic force. The sensitivity for reed switches is measured in AT (ampere-turns). Lower AT means that the switch is more sensitive to magnetism.
Type: FLEX-14
Max voltage: 200V DC
Max current: 0.5A
Sensitivity: 20AT
Total length: 44.3mm
Body length: 14mm
Body diameter: 2.28mm
NB! Cutting the connectors may harm the component, see more in pdf.
