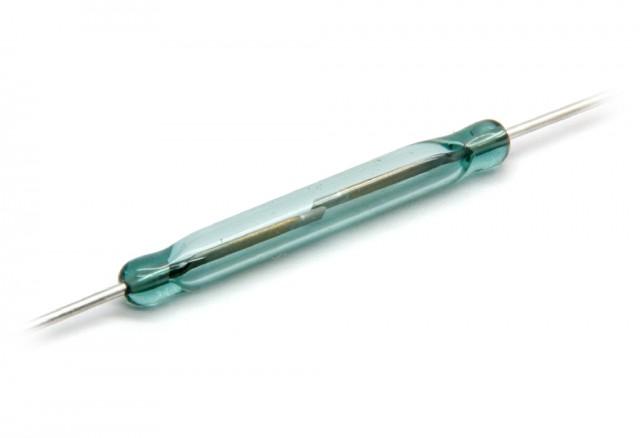

Reed switch 1p NO 1A MLRR-4

Reed switch, single pole. Contact is closed by magnetic force. The sensitivity for reed switches is measured in AT (ampere-turns). Lower AT means that the switch is more sensitive to magnetism.

Manufacturer: Hamlin
Type: FLEX-14
Max voltage: 200V DC
Max current: 1A
Sensitivity: 20AT

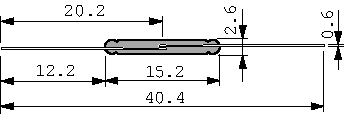

Total length: 40.4mm
Body length: 15.2mm
Body diameter: 2.6mm

NB! Cutting the connectors may harm the component, see more under Preview Files ("kapning av ben" - pdf is in English).
