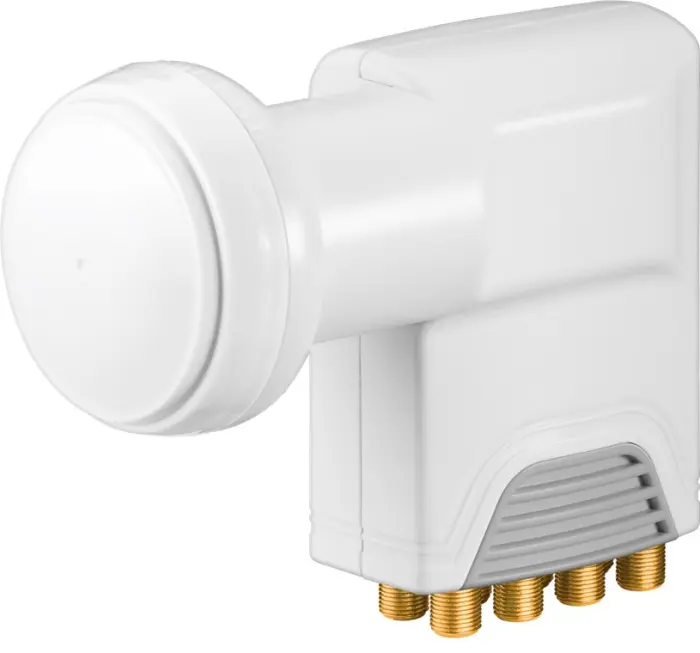

Universal Octo LNB 0.1dB

Universal Octo LNB, x8. For digital satellite reception – DVB-2, DVB-S2 (8K, 4K, UHD, HDTV, 3D)

Features:

• Satellite antenna for 8 satellite receivers
• Fully enclosed with weather-protected housing

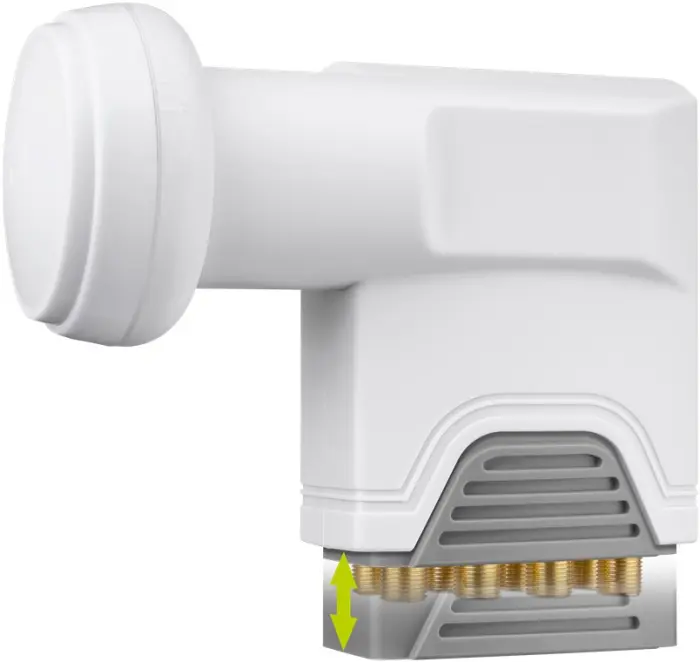

• Extra protection for the F-connector via a retractable moisture guard
• High signal strength due to extremely low noise figure of 0.1 dB

Technical Specifications:

• Output type: F-female (gold-plated)
• Number of outputs: 8
• Noise figure: 0.1 dB
• Input frequency, low band: 10.70 – 11.70 GHz
• Input frequency, high band: 11.70 – 12.75 GHz
• Output frequency, low band: 950 – 1950 MHz
• Output frequency, high band: 1100 – 2150 MHz
• Signal gain (Legacy): 52 – 62 dB (typ. 57 dB)
• LO (local oscillator) frequency, low band: 9.75 GHz
• LO (local oscillator) frequency, high band: 10.6 GHz
• Transmission standards: DVB-S, DVB-S2

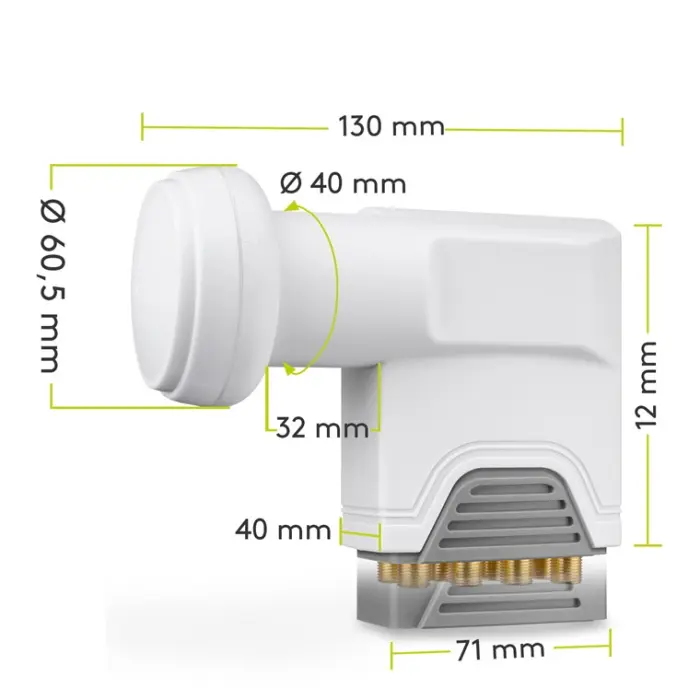

• Feedhorn (neck) diameter: 40 mm
