Product description

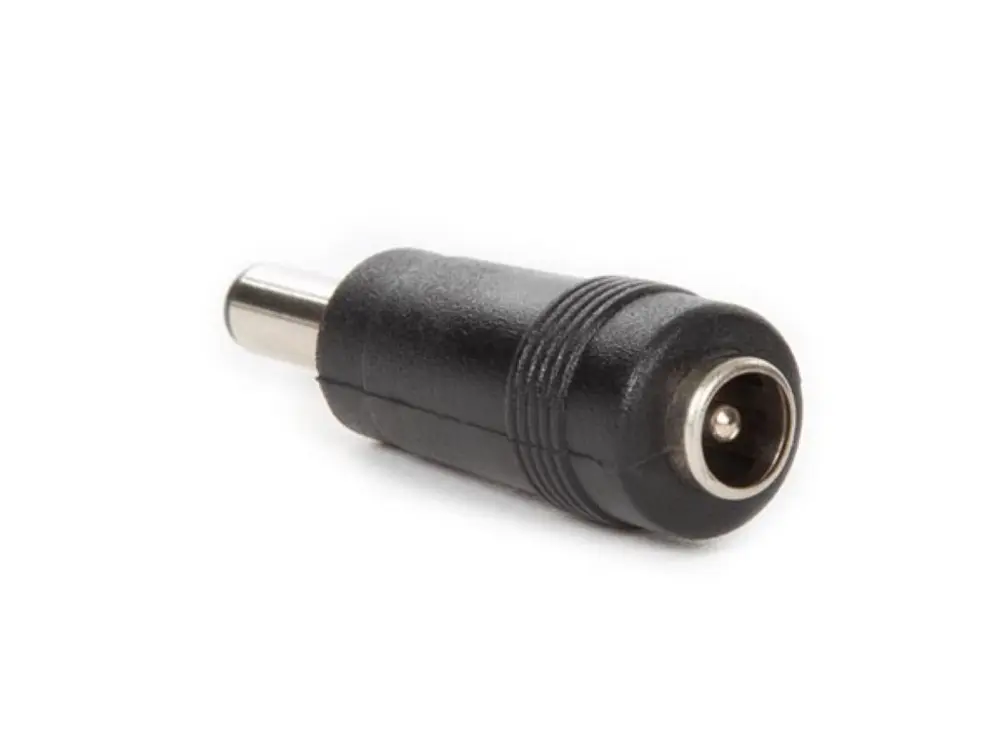

Set of 8 universal DC adapter plugs. Converts from DC plug 5.5 x 2.1mm female. Are intended to be used with mains adapter that have a fixed output voltage. When using S and V (USB) adapters, be careful not to input incorrect voltage. USB devices can be destroyed if they supplied with incorrect voltage. The centre pin of the DC adapter plug will have the same polarity as the polarity of the DC plug on the mains adapter. Usually plus (+) connects to the centre pin, but this is no guarantee. Check the mains adapter and connected appliance carefully before connecting. Supplying an appliance with incorrect polarity can damage it.

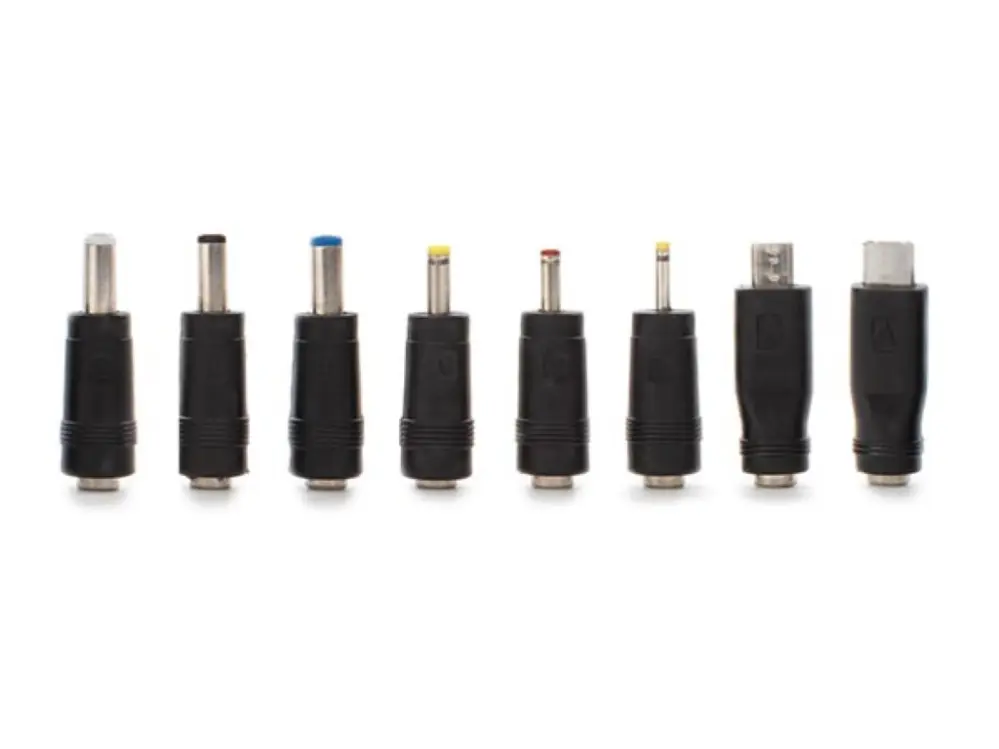

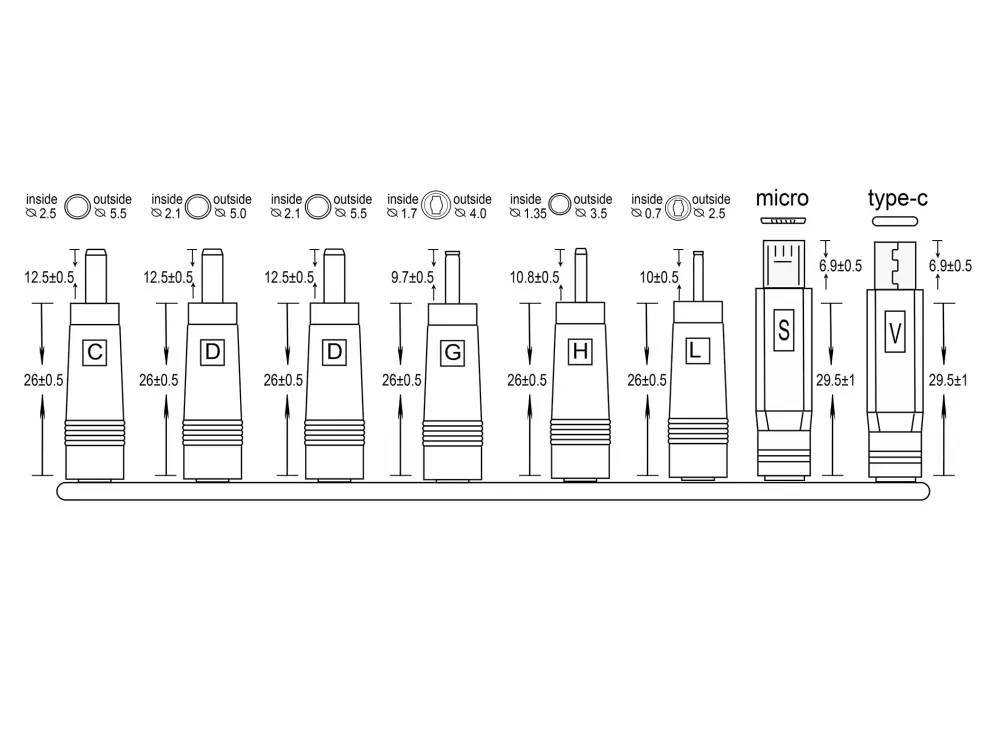

From 5.5x2.1 mm female to:
- C: 2.5 x 5.5 mm male (white top)
- D (1): 2.1 x 5.5 mm male (black top)
- D (2): 2.1 x 5.0 mm male (blue top)
- G: 1.7 x 4.7 mm male (yellow top)
- H: 1.35 x 3.5 mm male (red top)
- L: 0.7 x 2.5 mm male (yellow top)
- S: micro-USB (only used with 5V power adapter)
- V: USB-C (only for 5V, 9V or 12V power adapter)
