Product description
USB-ISO FULL SPEED USB ISOLATOR 1000VDC FOR PROTECTING YOUR PC OR LAPTOP WHILE CONNECTING USB DEVICES WIRED TO HIGH VOLTAGES
INFO:
USB-ISO is USB Full speed USB 2.0 compliant port isolator with 1000V isolation voltage. This device is very useful as protects your PC computer USB host from overvoltages, ESD shock, it provides 1000VDC isolation and this way you can connect to your PC programmers and debuggers which work directly with targets at high voltages like 220V mains power supply etc. Even if your target is not connected to high voltage, USB-ISO is additional protection for your valuable computer, laptop etc. equipment.
FEATURES:
USB isolation 1000VDC between USB host and USB device
Fully USB 2.0 Compliant
Full speed data rate 12 Mbps
Bidirectional communication
Short-circuit protection for xD+ and xD- lines
Class 3A contact ESD performance per ANSI/ESD STM5.1-2007
High common-mode transient immunity: >25 kV/µs

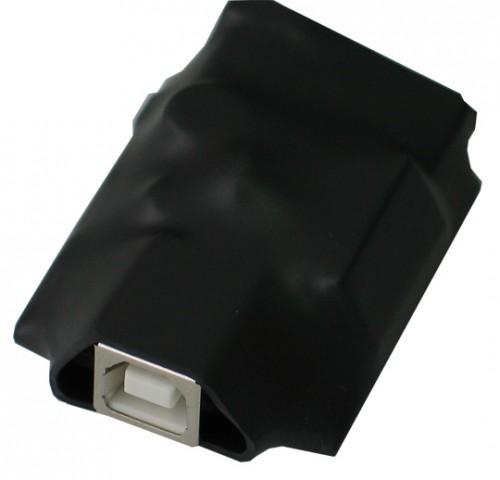

USB_DEVICE connector- which is USB-B type and have to be connected to the PC USB host.

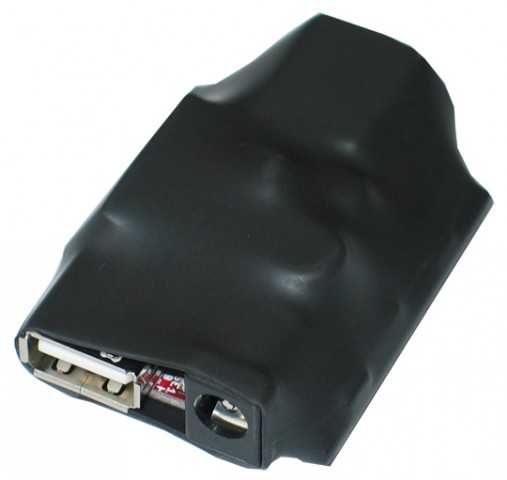

USB_HOST connector which is USB-A type and have to be connected to the USB device like USB JTAG, programmer, debugger etc
Power Jack for external power supply with +8-15VDC, note this power jack is not isolated from the USB_HOST connector
DC-DC converter supply isolated voltage to the USB_HOST from the USB_DEVICE if no external power supply is present
dimensions 41.5x36.5 mm (1.634x1.437")
