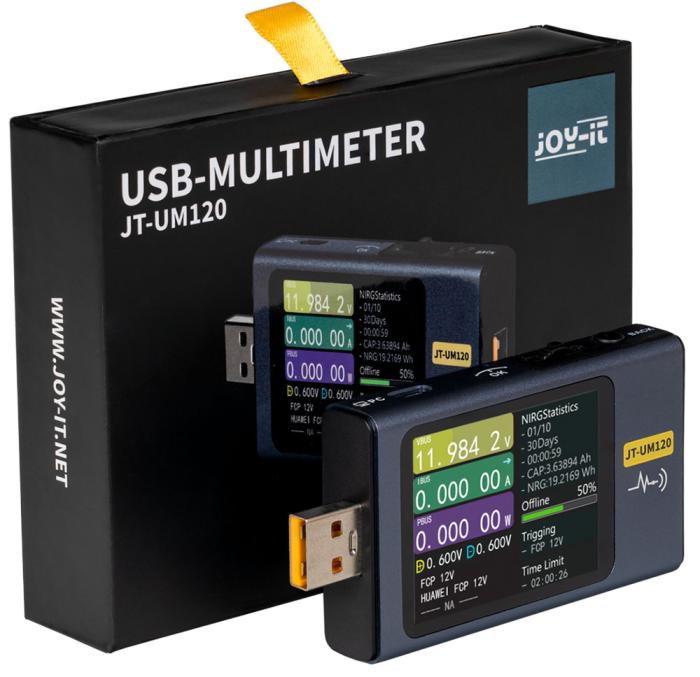

USB-testare med 8 mätfunktioner och QC/PD-analys
Art no: 41023316 - Joy-It
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
JT-UM120 is a digital multimeter for measuring USB ports. Capable of measuring up to 7A. With display modes such as overview measurements, detailed measurements and real-time graph display. Additional features are the possibility to evaluate via separate PC software. With 2.0” ISP color display and 10 measurement groups. Dimensions: 82x42x13 mm.
Features:
- Measuring device for USB applications
- Measurement value output via LCD display
- Automatic protocol detection
- Orientation-dependent display rotation
Measurement functions:
- Current: 0-7 A
- Voltage: 4-28 V
- Energy: 0-9999 Wh
- Power: 0-128 W
- Capacity: 0-9999 Ah
- Cable resistance: 0-9999 ohms
- Can also display: Voltage curve, ripple and protocol
USB ports:
- Inputs: USB A, USB-C, Micro-USB
- Outputs: USB A, USB-C
- PC communication: Micro-USB
Supported protocols:
- QC2.0, QC3.0
- Huawei FCP, SCP, Samsung AFC
- PD2.0, PD3.0
- VOOC/WARP, SuperVOOC 1.0, Super VOOC 2.0, MTK-PE
- Apple 2.4A
Product information
SKU:
41023316MPN:
JT-UM120EAN / GTIN:
4250236825939
