Product description

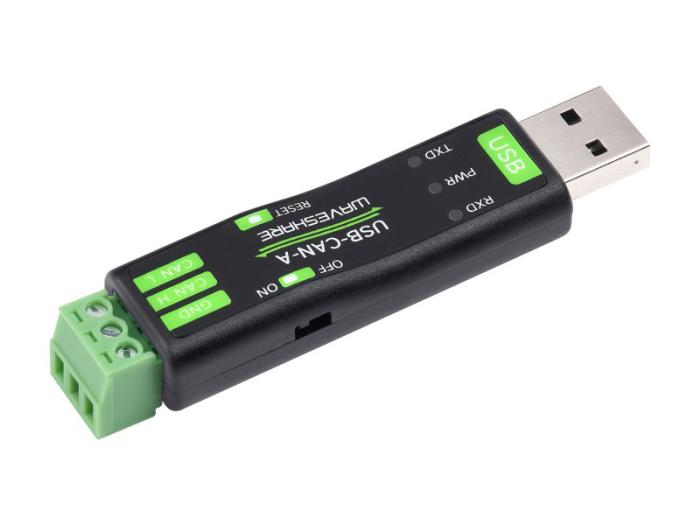

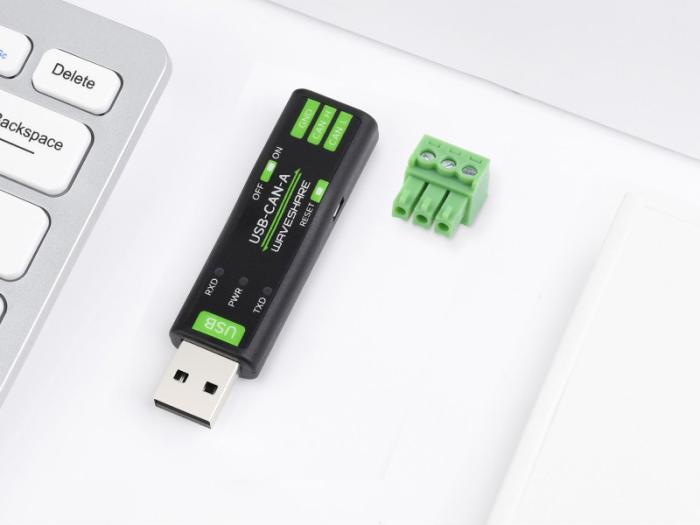

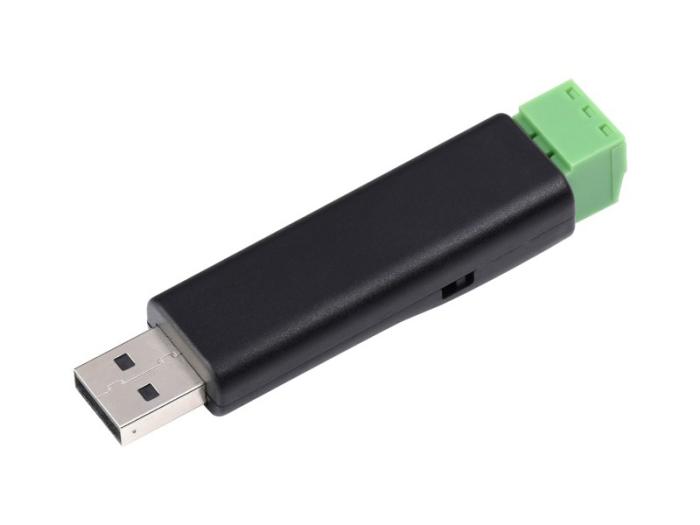

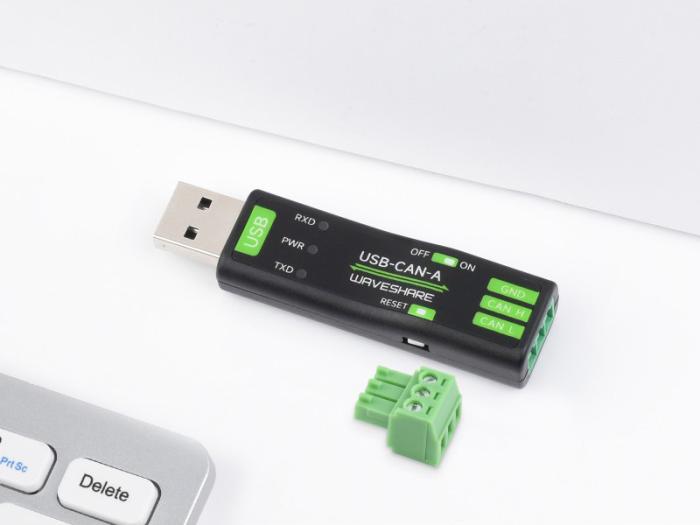

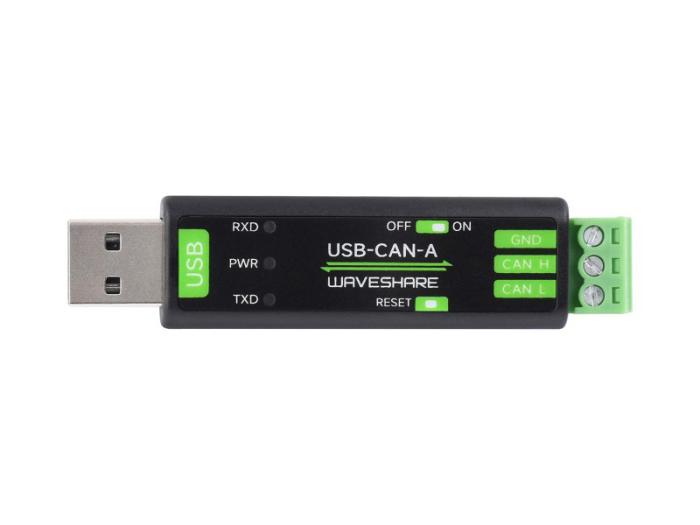

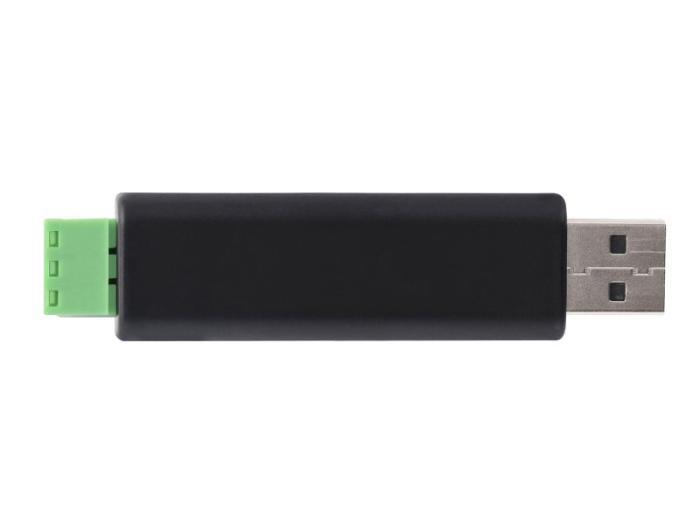

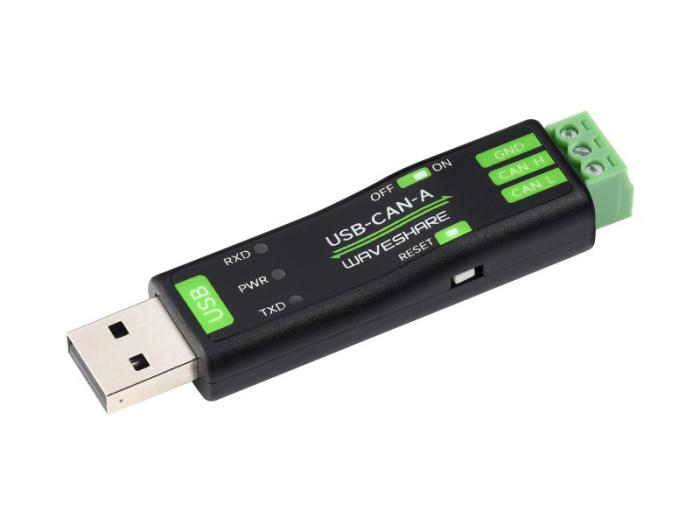

CAN bus to USB adapter. Connect CAN Bus to a USB port. Support for CAN 2.0A and CAN 2.0B with speed up to 1 Mbps.
Specifications:
- USB to CAN Adapter Model A, STM32 Solution, Multiple Modes
- Versatile USB to CAN adapter with STM32 solution
- Compatible with Windows, Linux, and Raspberry Pi OS systems
- Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
- CAN baud rate is configurable in the range of 5Kbps-1Mbps
- Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
- Supports multiple CAN data sending modes: single frame, multiple frames, manually, regular and cyclic sending
- Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify an ID to automatically answer the configured data
- Data can be saved as TXT or Excel
- Supports CAN bus detection for checking status
- Sending/receiving CAN data with a time scale, allows sequentially displaying
- Baud rate of the USB virtual COM port is configurable in the range of 9600 - 2000000 bps (2000000 bps by default)
- Supports set working parameters by configuration software or serial command, can be saved after power off
- Adopts STM32 chip solution, stable and reliable communication
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit
- Comes with the host software for Windows system, easy to use.
- Easy secondary development, just need to modify the sending and receiving commands.
