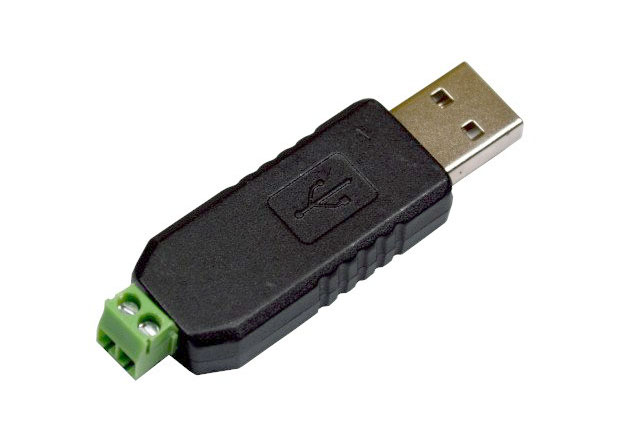

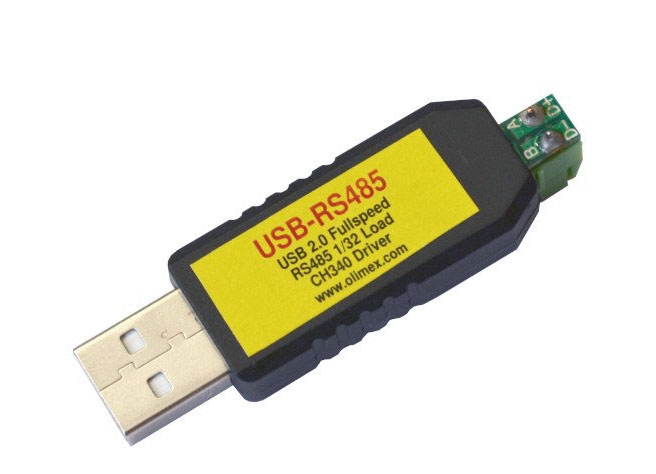

USB to RS485 Adapter – for Reliable Serial Communication. The USB-RS485 is a compact and reliable adapter that enables easy connection of a PC or Linux computer to an RS485 network. RS485 is a well-established standard for serial communication in industrial environments where reliability, noise immunity, and long cable lengths are essential.

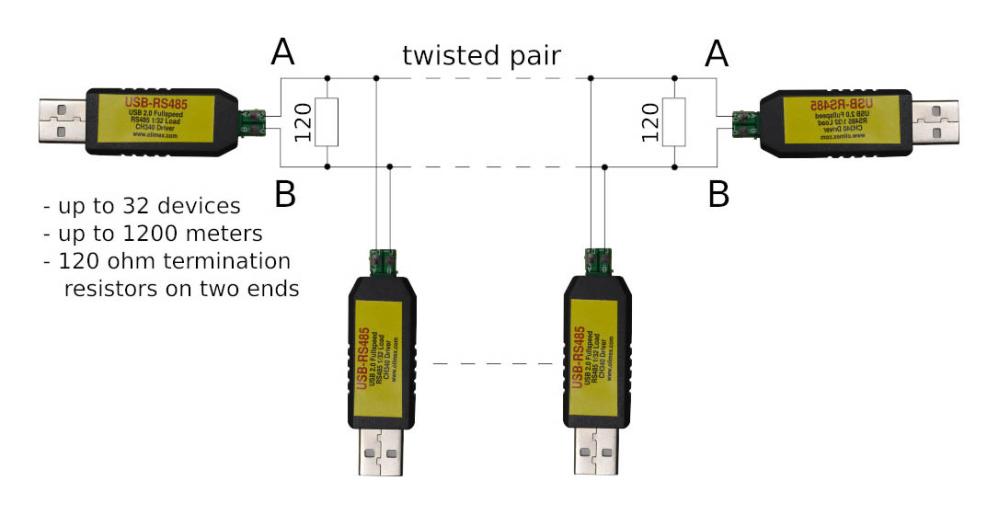

The adapter supports up to 32 nodes on a shared data bus and allows communication over twisted pair cables up to 1200 meters in length. To ensure optimal signal integrity, 120-ohm termination is required at both ends of the bus. The device uses the CH340 driver and supports data rates from 75 to 115200 bps.
Features:
- USB 2.0 interface
- RS485 with 1/32 load, supports up to 32 devices
- Twisted pair cable length up to 1200 m
- Data rate: 75–115200 bps
- Requires 120 Ω termination at both ends
- CH340 USB-to-serial driver
- Operating temperature: -40 to +85 °C
- Dimensions: 60 x 12 x 12 mm
