ESP32-C6 development board

Art no: 41022525 - Waveshare
Shop this product, ESP32-C6 development board
price 99 SEK
Including 25% VAT
In stock, 73 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Developing with the ESP32-C6 means working with a modern microcontroller platform that combines high performance, low power consumption, and advanced wireless communication. Featuring a RISC-V-based 32-bit CPU, support for WiFi 6 and Bluetooth Low Energy (BLE), and ample internal resources such as flash and SRAM, the ESP32-C6 is suitable for both IoT prototyping and final products.

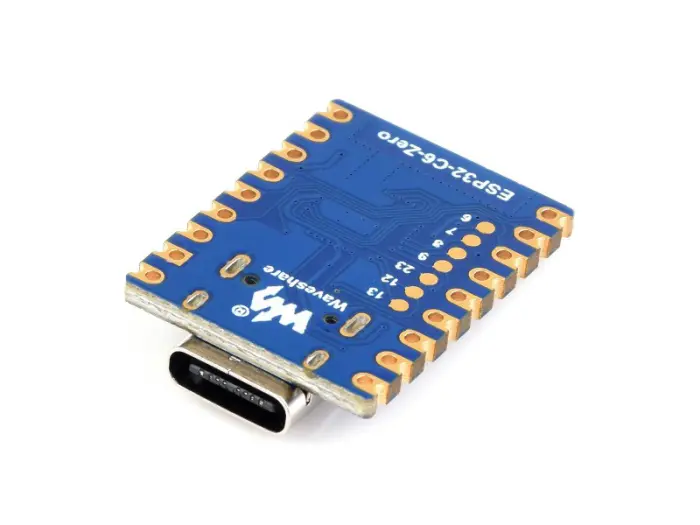

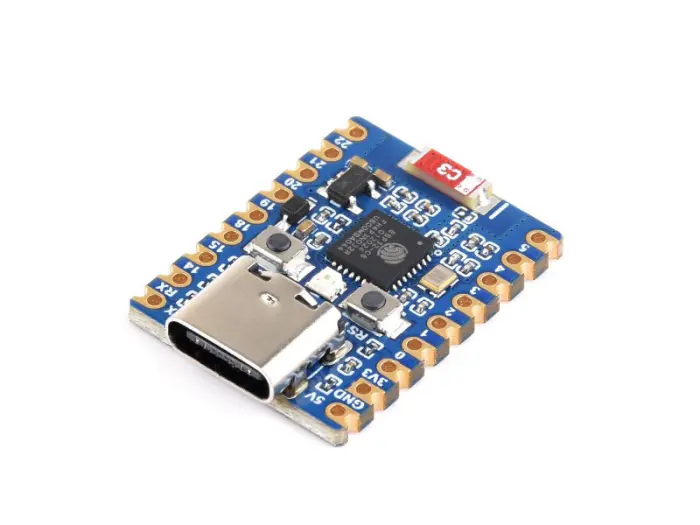

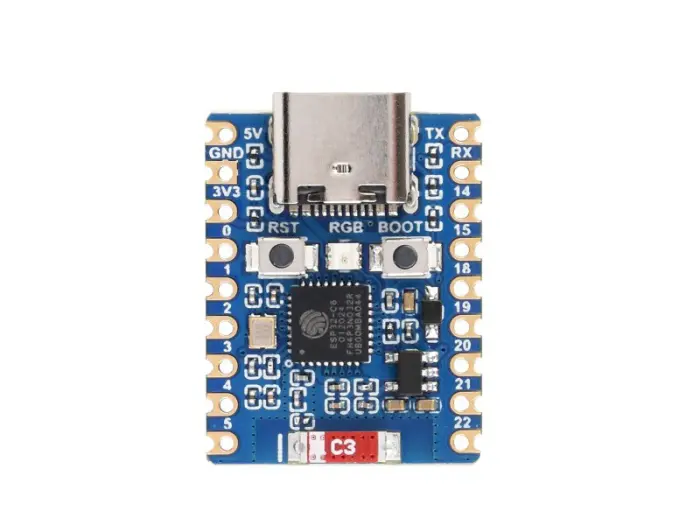

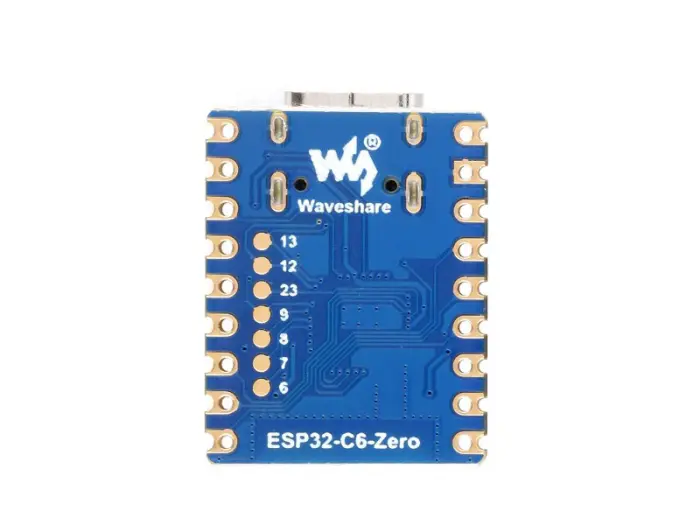

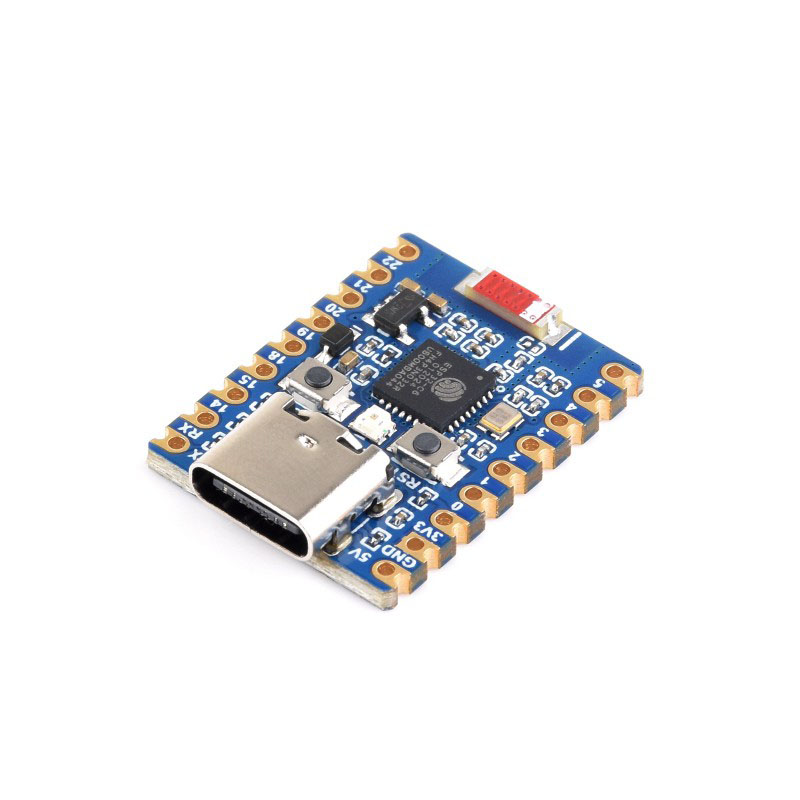

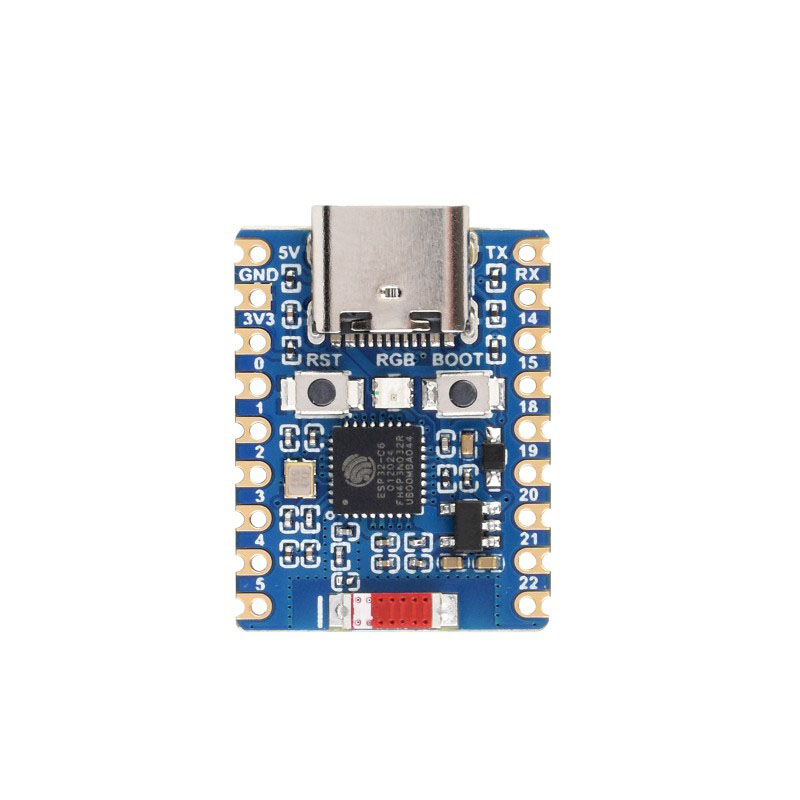

The ESP32-C6-Zero is a compact development board offering a wide range of peripheral interfaces. It uses the ESP32-C6FH4, which integrates a 32-bit single-core RISC-V processor running at up to 160 MHz. It also includes 320 KB ROM, 512 KB high-performance SRAM, and 16 KB low-power SRAM. The board provides broad compatibility with various types of peripherals, making it suitable for a wide range of applications.

Development can be carried out using either ESP-IDF or the Arduino IDE, enabling a straightforward start and rapid integration into custom products.

For breadboard mounting, a pin header is required (sold separately). Recommended pin header: 41001167.

Key Features

  • Based on the ESP32-C6FH4 with a 32-bit single-core RISC-V CPU running at 160 MHz
  • Integrated memory: 320 KB ROM, 512 KB high-performance SRAM, 16 KB low-power SRAM, and 4 MB flash memory
  • Integrated wireless communication: 2.4 GHz WiFi 6 and Bluetooth Low Energy (BLE) with excellent RF performance
  • Zigbee and Thread (802.15.4)
  • USB-C for convenient connection and power supply
  • Supply voltage: 5 or 3.3V
  • Logic voltage: 3.3V

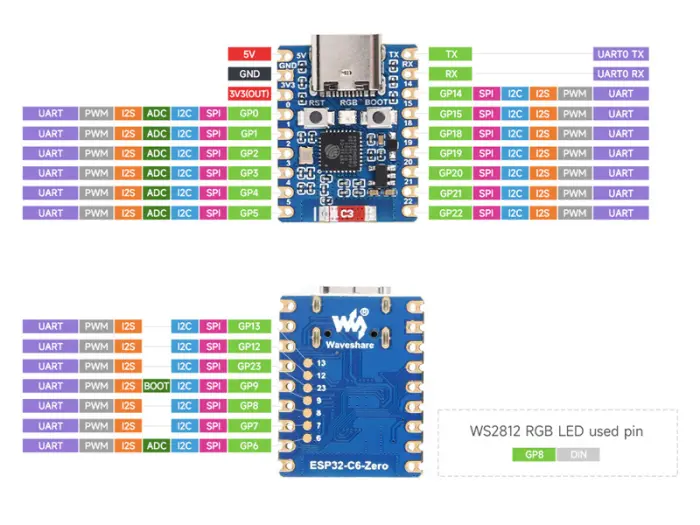

  • Numerous available peripheral interfaces ensure good compatibility and expandability
  • Gold-plated castellated holes on the edges allow for surface mounting directly onto a PCB
  • Support for multiple power-saving modes, enabling optimization of communication range, data rate, and power consumption depending on application needs
