Product description

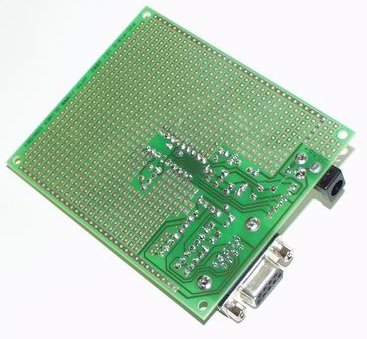

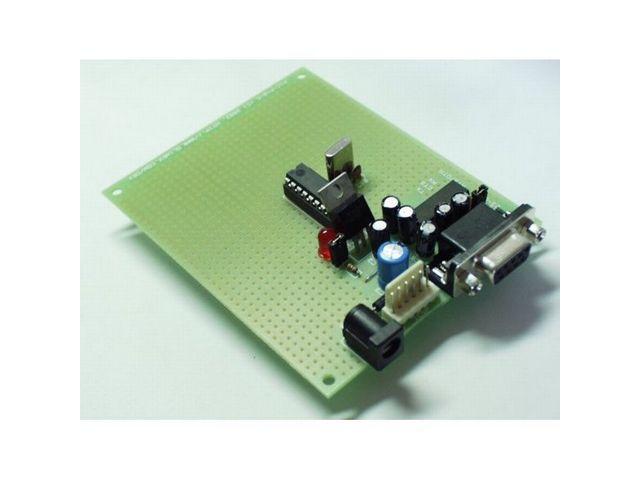

Prototype board for 18 pin PIC microcontrollers with power supply circuit, 20MHz crystal oscillator circuit, RS232 port, and ICSP/ICD programming port.
* FR-4, 1.5 mm (0.062"), green solder mask, white silkscreen component print
* Four mounting holes - diameter 0.13" (3.3 mm)
* ICSP/ICD connector for programming with PIC-PG1, PIC-PG2C, and debugging with PIC-ICD1 (for the PICs with ICD support) or PIC-ICD2
* Power barrel jack
* Voltage regulator +5V, 7805 and filtering capacitors
* LED to RB3 through jumper
* Crystal oscillator circuit 20Mhz
* DIL18 microcontroller socket
* RS232 DB9 female connector
* RS232 MAX232 interface circuit with Tx, Rx, CTS, DTR/RTS signals
* Extension slot on every uC pin
* Grid 100 mils
* GND bus
* Vcc bus
Size: 100x80mm
Board does not come with PIC installed
