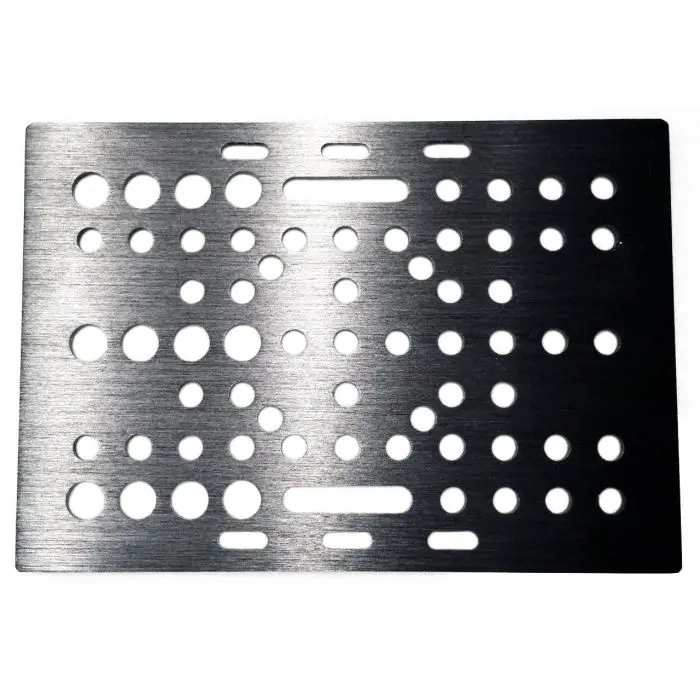

V-Slot Gantry Plate (Option: Universal (20mm - 80mm))

Art no: 41020141 - Ratrig
Shop this product, V-Slot Gantry Plate (Option: Universal (20mm - 80mm))
price 155 SEK
Including 25% VAT
In stock, 1 pcs
Unit: Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Universal (20mm - 80mm) - This plate was designed to fit on all standard V-Slot sizes. It's a great plate to have and use on your builds!


We want to ensure that we simplify belt clamping so we have incorprated 'Fold-Through' Slots to allow you to easily fold the timing belt teeth back onto themselves and zip tie or clamp them in place.


We have also added two 5mm slots that allow you to attach spacers for 90 degree belt mounts under or on top of the plate as well.


This simplifies the overall building process and allows for quick assembly times of motion systems.


NOTE: There are a lot of possible mounting configurations for these plates so please be sure to look at all the example model builds.


Gantry Plate Only
6063-T6 Aluminum
Black Anodized Finish
3mm~ (1/8") Thick



* Please note - this plate was designed to be used with V-Slot and is not comptible with OpenRail.

Product information

  • SKU:

    41020141
  • MPN:

    HW1433PC
