Product description

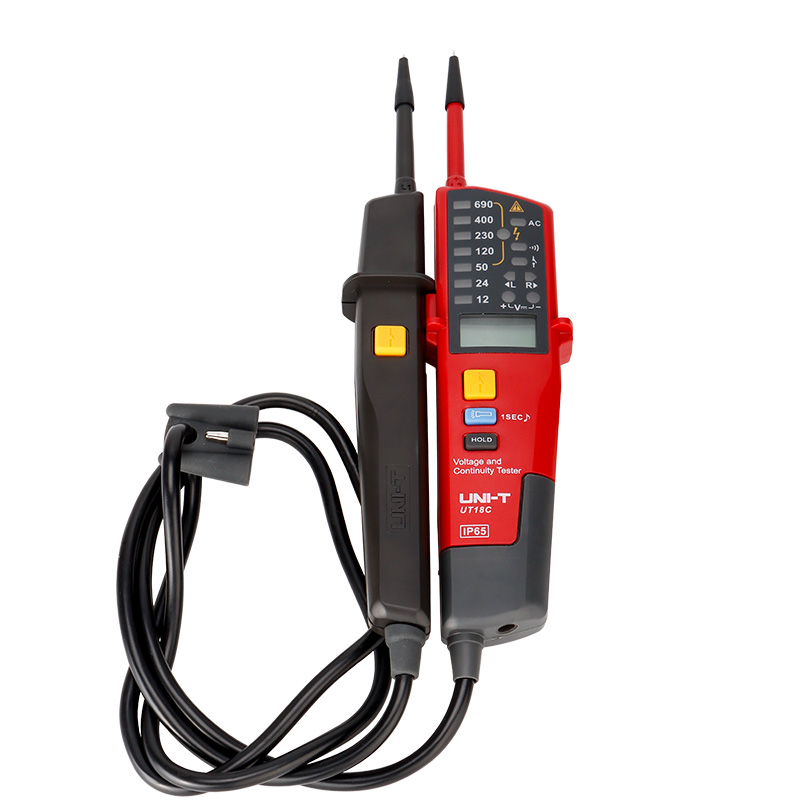

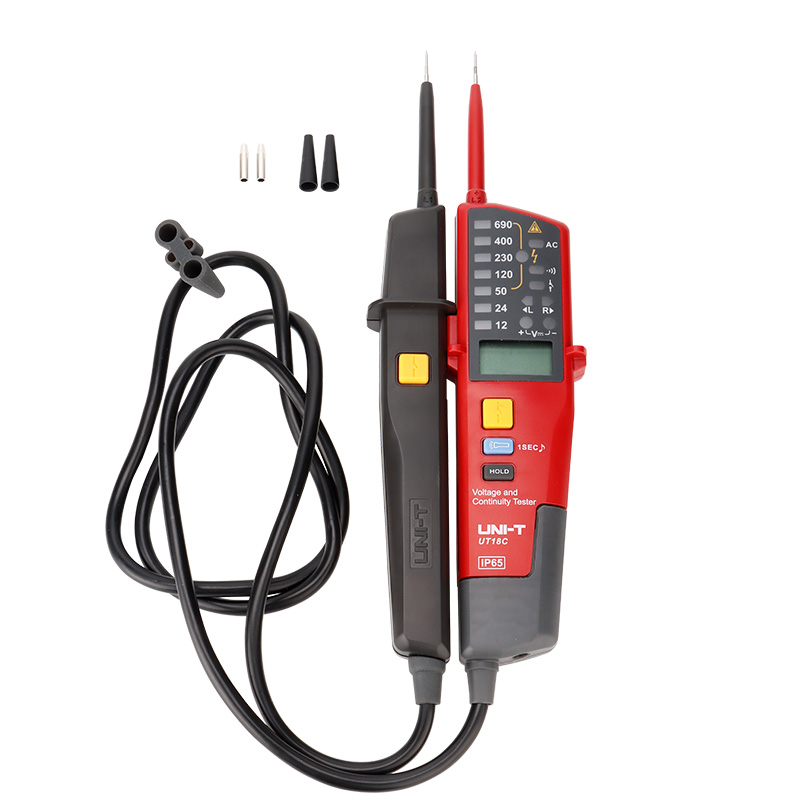

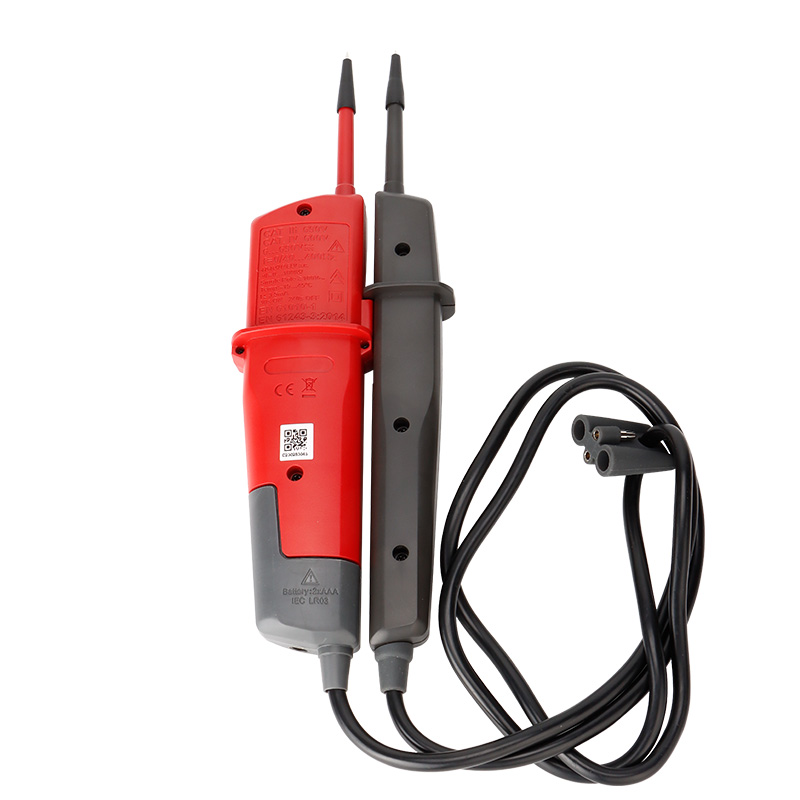

Competent voltage tester with fully automatic measurement of voltages up to 690 V. Automatic detection of AC or DC, also shows polarity (DC). Continuity test with buzzer. Phase sequence tester / direction of rotation (L1, L2, L3). RCD-tester. LED indication and LCD display shows current voltage. Automatic selection of measuring range. High protection class and water resistance (IP65). No battery required to perform test with LED display (powered by the tested object). However, to get the measurement value in plain text in LCD display, working batteries (2x AAA) are required.
Voltage range LED indication (AC or DC):
- 12 V: 8V ±1V
- 24V: 18 ±2V
- 50V: 38V ±4V
- 120V: 94V ±8V
- 230V: 180V ±14V
- 400V: 325V ±15V
- 690V: 562V ±24V
Specifications:
- Phase sequence tester: 57-400 ACV
- RCD-test: 230 VAC (30 mA)
- Frequency: 50-400 Hz
- Continuity test: 0 to 100 kOhm (with buzzer + LED)
- Built-in flashlight (LED)
- Dimensions: 440x295x455 mm
- Weight: 280 g
- Battery: 2x AAA (included)
- Protection class: IP65
- Safety category: CAT III 690V, CAT IV 600V
