Rotary switch 1-p 12 pos closing

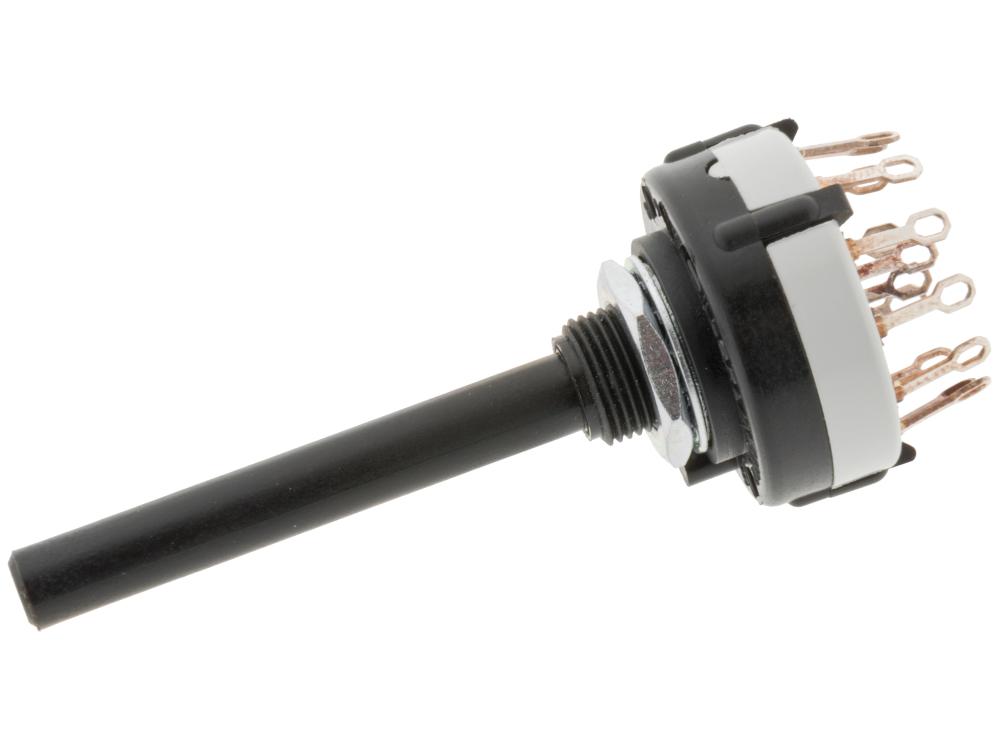

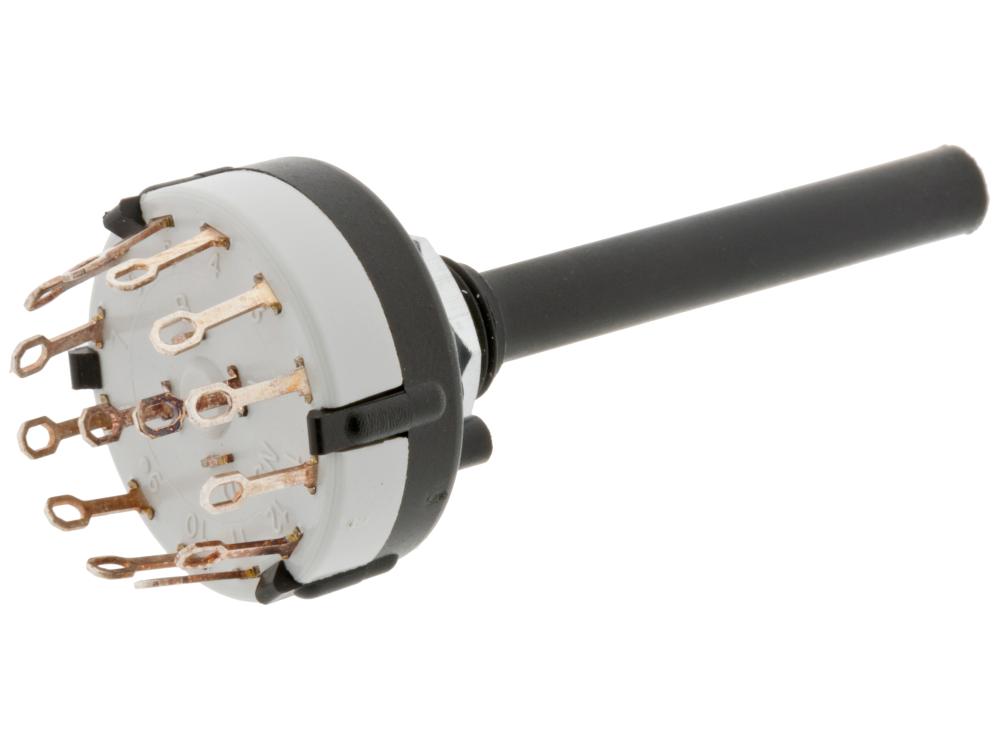

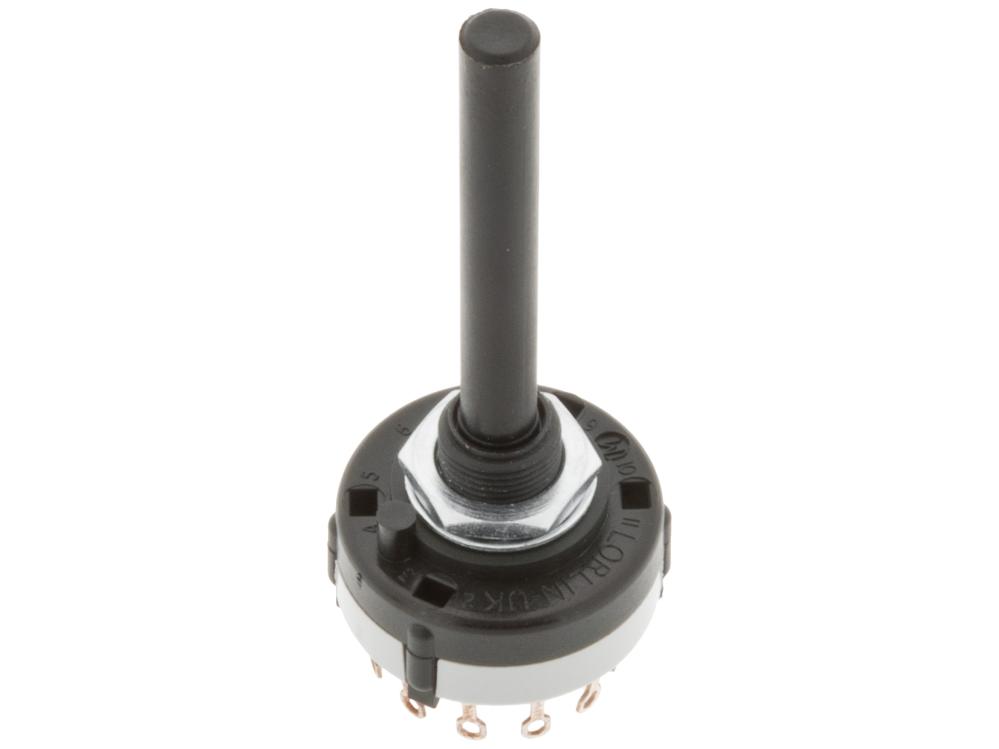

Rotary switch with solder lugs for panel mounting. The switch has 12 positions and one common connection. When the switch is actuated, the different positions are connected to the common pin. The switch will connect the next position before disconnecting the previous (shorting, make before break). A stop ring is included and can be used for limiting the number of usable positions. The shaft is 42mm long and can be cut to length.

• Poles: 1


• Positions: 12


• Diameter: 26.2 mm


• Mounting hole: 10 mm


• Shaft: ø6 mm x 42 mm


• Step angle: 30 °


• Max voltage: 250 V


• Max current: 150 mA


• Contact resistance: 20 mohm


• Working temperature: -30 to +85 °C


• Manufacturer: Lorlin


• Part.no: CK1039
