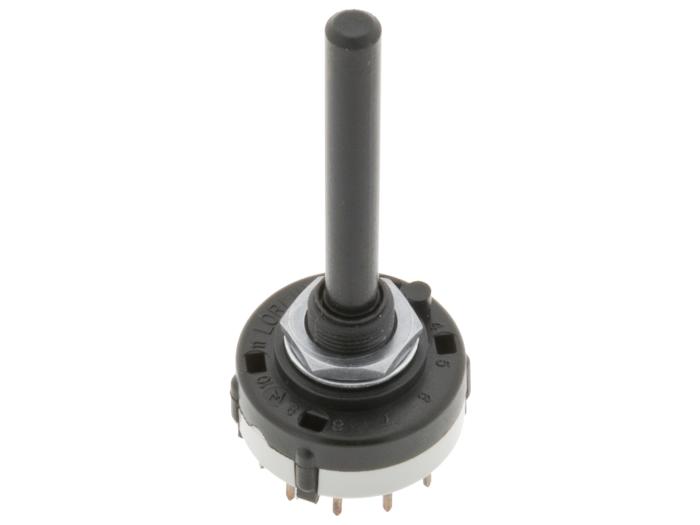

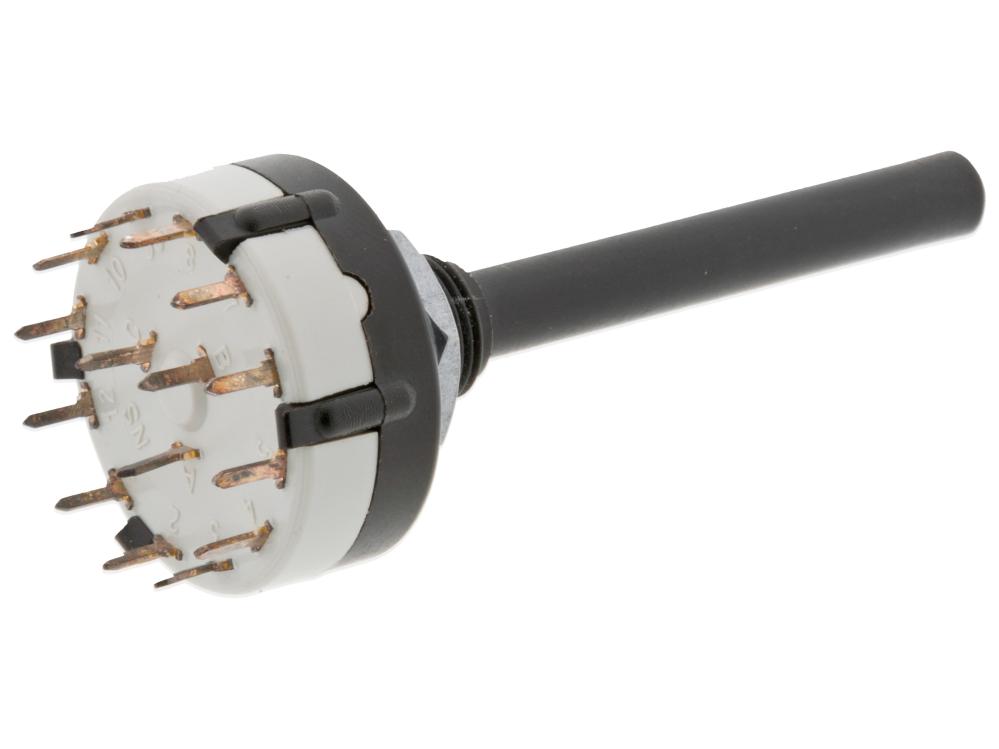

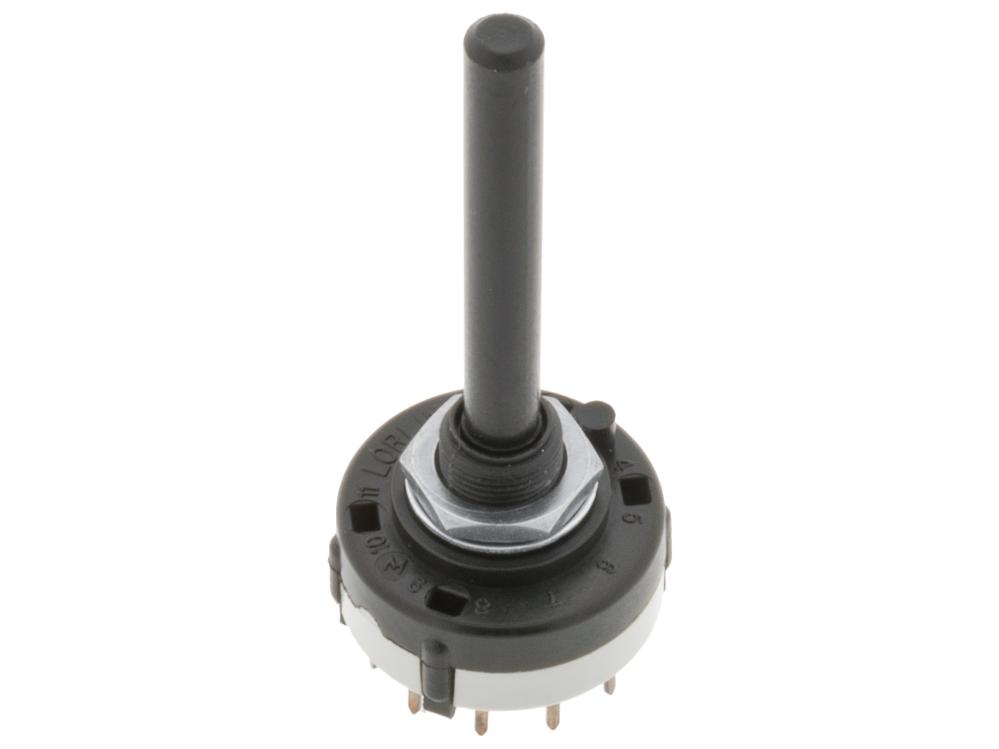

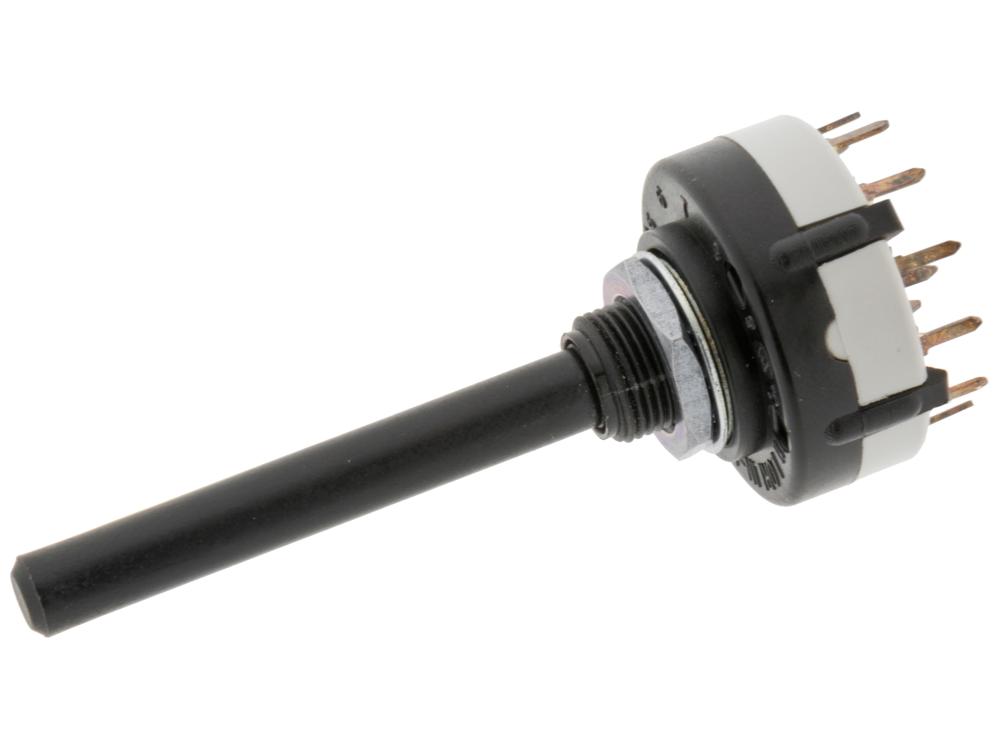

Rotary switch 3-p 4 pos PCB

Rotary switch with pins for PCB mounting. The switch has 4 positions and 3 common connections. When the switch is actuated, the different positions are connected to the common pins. The switch will disconnect before connecting the next position (non-shorting, break before make). A stop ring is included and can be used for limiting the number of usable positions. The shaft is 42mm long and can be cut to length.

• Poles: 3


• Positions: 4


• Diameter: 26.2 mm


• Mounting hole: 10 mm


• Shaft: ø6 mm x 42 mm


• Step angle: 30 °


• Max voltage: 250 V


• Max current: 150 mA


• Contact resistance: 20 mohm


• Working temperature: -30 to +85 °C


• Manufacturer: Lorlin


• Part.no: CK1051
