Product description

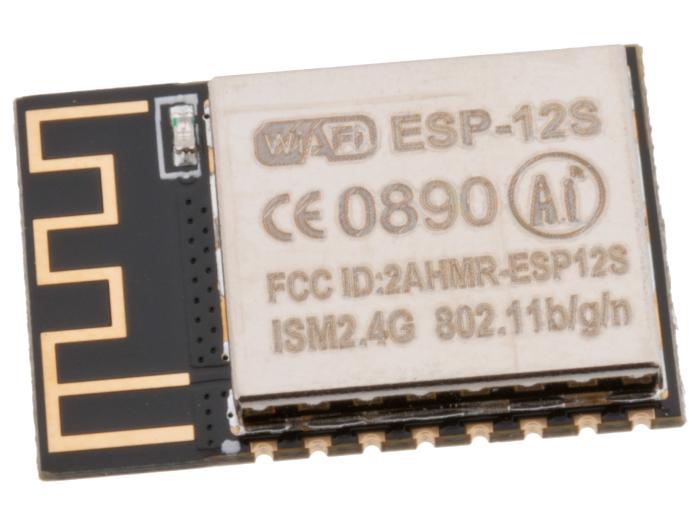

The ESP-12S is a small module for soldering onto printed circuit boards. ESP-12S contains a microcontroller with WIFI connection. The module is often just called ESP-8266 and is integrated in countless development boards and finished products. This model is for those who want as minimal a solution as possible but many inputs and outputs available. For a more user-friendly model, see Adafruit Huzzah or some of our other boards with ESP8266. A large number of peripherals are built in, including 10-bit AD converters, interfaces for SD cards, SPI, UART, I2C, I2S, PWM and much more. Of course, there is also a complete WIFI transceiver with support for 802.11 b/g/n.
Specifications:
- Core: ESP8266 - Tensilica L106
- Frequency: 160 MHz
- Storage, flash: 4 MB SRAM
- WiFI: b/g/n
- Supply voltage: 3.3V
- Logic levels: 3.3V
- Mounting: board-to-board soldering (surface mount)

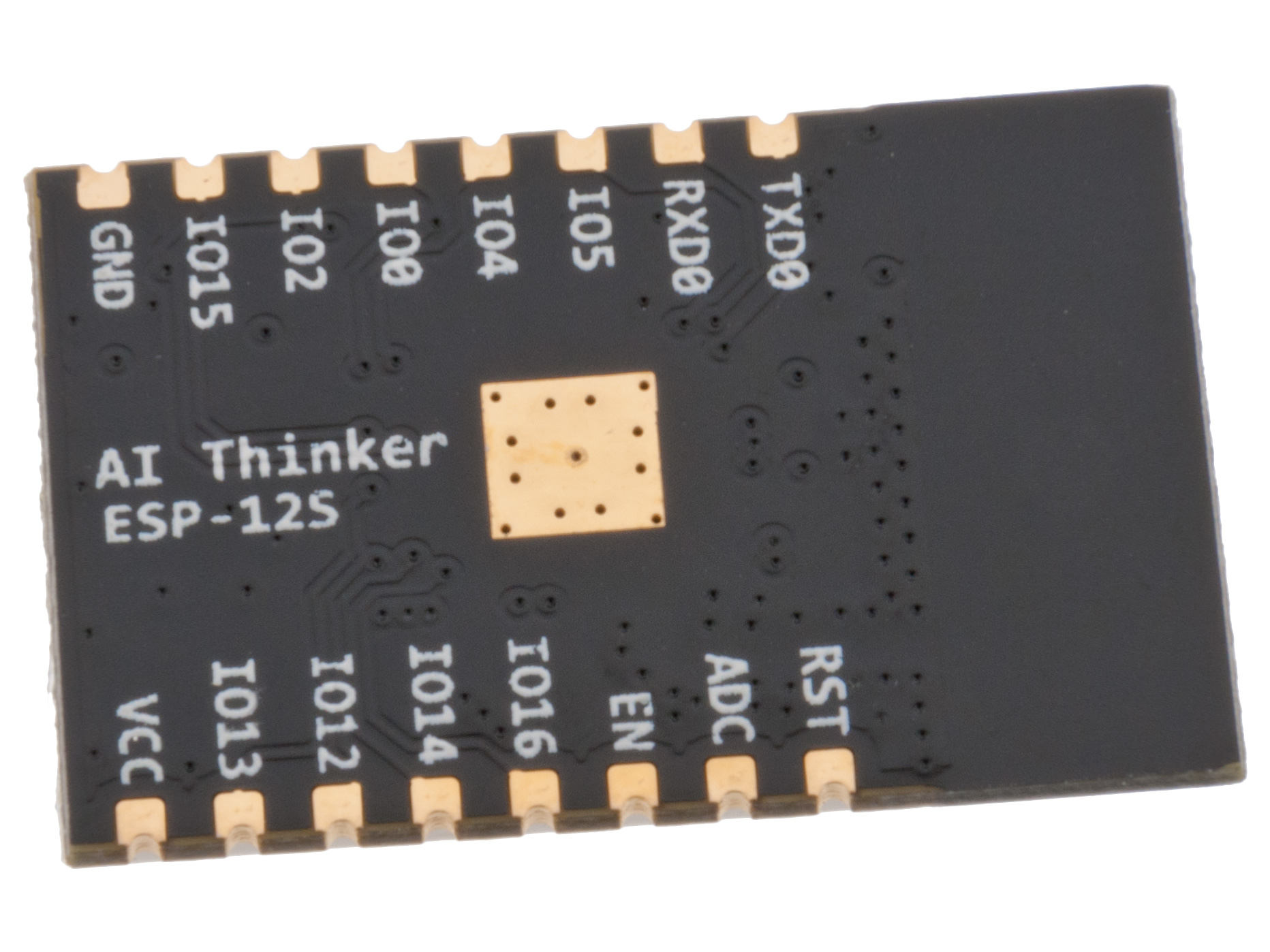

- Solder connection: Gold plated castellated holes on edges - 16-pin, 2 mm pitch
- Dimensions: 24x16 mm
- Antenna: Built-in
- Interfaces: SDIO 2.0, (H)SPI, UART, I2C, I2S, IRDA, PWM, GPIO
