Product description

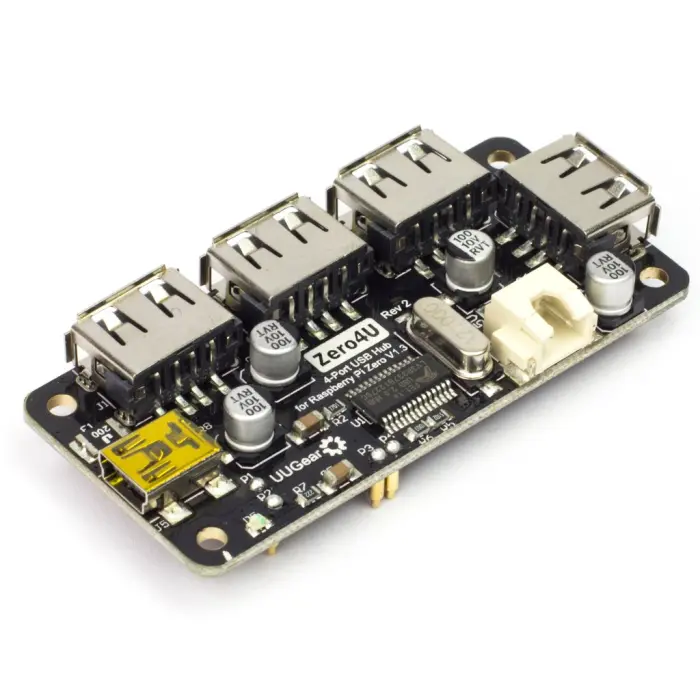

This is a 4-port USB 2.0 hub for Raspberry Pi Zero and Zero 2W. Is mounted to Raspberry Pi Zero back-to-back.
The 4 pogo pins on the back will connect the Raspberry Pi Zero, hence no soldering will be needed.
The USB hub will take power directly from your Raspberry Pi Zero, so you don't need to power the USB hub separately. However you can use the JST XH2.54 connector on board as the alternative power input port.
The blue LED on board works the power indicator, and lights up when power is connected. Each USB port has a dedicated white LED as transaction indicator, and a dedicated electrolytic capacitor to help stabilizing the output voltage. If you use this USB hub with other types of computer, you can use a USB cable (not included) to connect the mini-USB port on board to the up-stream USB port.
Contents:
- 4-port USB hub board x 1
- plastic spacer x 4
- M2.5 plastic screw x 4
- M2.5 plastic nut x 4
For more details, check out the User Manual
Specifications:
- Dimension: 65mm x 30mm x 9mm
- Weight: 14 g
- Power Mode: Bus-Power / Self-Power
- Standards: USB 2.0 and 1.1
- Working Voltage: 5V DC
- Static Current: 1mA
- Maximum Output Current: 2A for all ports in self-power mode, 500mA for all ports in bus-power mode
- Operating Temperature: 0°C - 70°C
